Epix® Indoor COB Series
Indoor COB LED Screens
Fine-pitch indoor COB LED screens designed for close viewing, detailed content and premium commercial environments.
Epix® Indoor COB LED Screens use 320 × 160 mm modules and can be installed using custom steel structures, magnetic mounting systems or standard 640 × 480 mm aluminium cabinets.
Pixel pitch & resolution
Compare P1.25, P1.5 and P1.8 COB LED Screens
All three indoor COB LED screen options use a 320 × 160 mm module format. The selected pixel pitch determines the module resolution and the final resolution of the completed screen.
| Specification | P1.25 | P1.5 | P1.8 |
|---|---|---|---|
| Product type | Indoor COB LED Screen | Indoor COB LED Screen | Indoor COB LED Screen |
| Module size | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm |
| Module resolution — W × H | 256 × 128 px | 208 × 104 px | 172 × 86 px |
| 640 × 480 mm cabinet arrangement | 2 × 3 modules | 2 × 3 modules | 2 × 3 modules |
| 640 × 480 mm cabinet resolution* | 512 × 384 px | 416 × 312 px | 344 × 258 px |
| Typical selection | Highest detail / closest viewing | Fine-pitch close viewing | Fine-pitch larger screens |
*Cabinet resolutions are calculated from the confirmed module pixel matrices using two modules across and three modules high. Complete-screen resolution depends on the final screen size.
The representative P1.5-class COB module has an actual pixel pitch of 1.538 mm with a resolution of 208 × 104 pixels. P1.5 is used as the customer-facing series designation.
COB LED screen technology
Fine-pitch COB LED screens for close viewing
COB 3-in-1 technology supports fine pixel pitches, high contrast and wide viewing angles for indoor LED screens where viewers may be positioned relatively close to the image.
High pixel density
P1.25, P1.5 and P1.8 configurations provide high-resolution screen options for detailed indoor content.
High contrast
The representative P1.5 COB specification supports contrast up to 10,000:1.
Wide viewing angle
The representative COB module specifies a 160° horizontal and 160° vertical viewing angle.
3840 Hz refresh
High refresh performance supports smooth video playback and camera-friendly indoor screen applications.
Magnetic module access
Magnetic mounting can provide convenient module access where a suitable steel-backed structure is used.
Modular screen dimensions
Indoor COB LED Screens can be configured around the required wall dimensions using modules or cabinets.
Technical overview
Indoor COB LED Screen Specifications
The specifications below combine the confirmed series format with representative P1.5 COB module performance.
| Application environment | Indoor |
|---|---|
| LED technology | COB 3-in-1 |
| Available pixel pitches | P1.25 / P1.5 / P1.8 |
| Module size | 320 × 160 mm |
| Representative brightness | 600 cd/m² |
| Representative refresh rate | 3840 Hz |
| Representative viewing angle | 160° H / 160° V |
| Representative contrast | Up to 10,000:1 |
| Representative working voltage | DC 4.5 V |
| Representative maximum module power | Approx. 21 W |
Actual pixel pitch: 1.538 mm

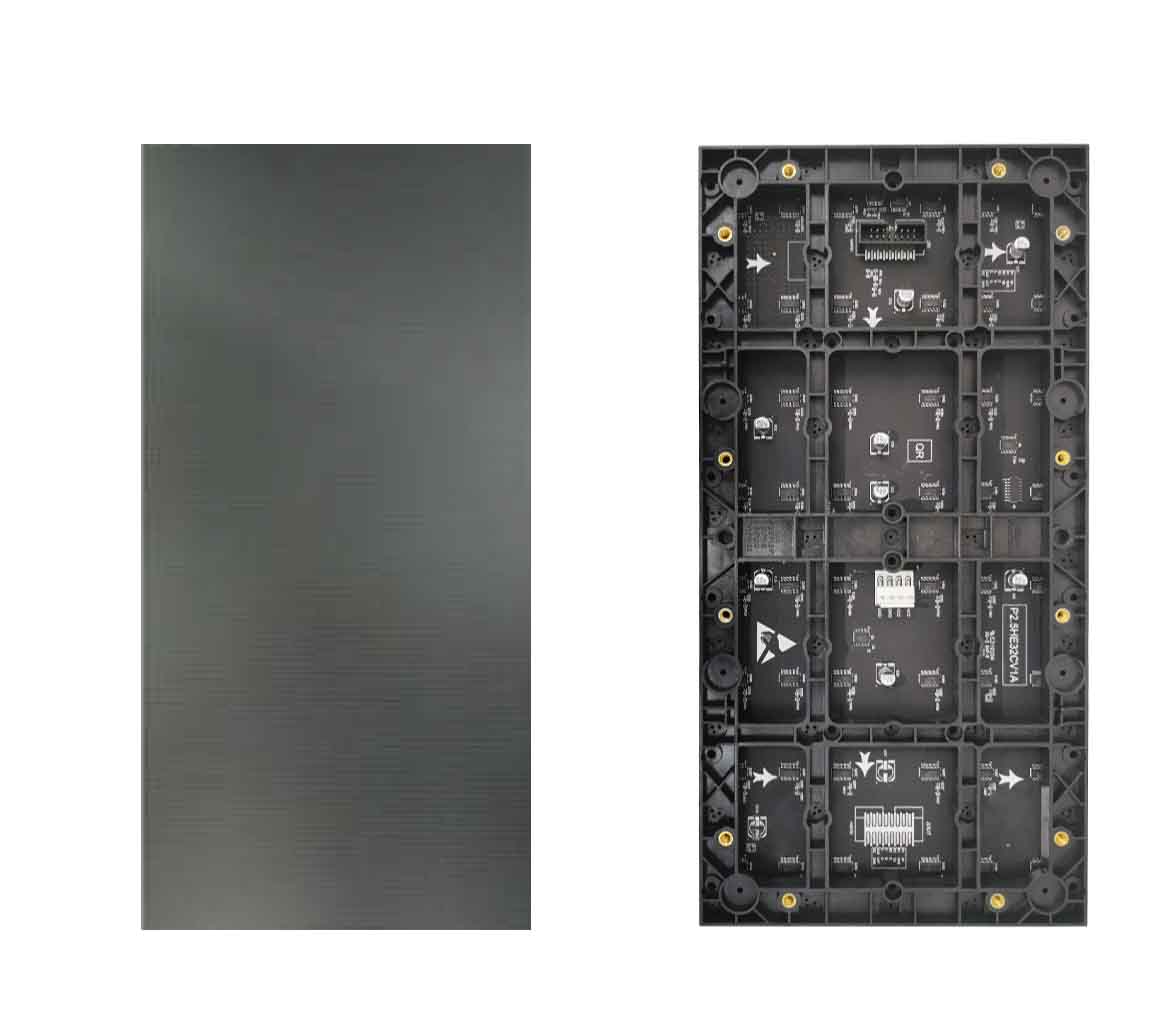

The current P1.5-class COB module uses a 320 × 160 mm format with a 208 × 104 pixel matrix.
Configured for each COB LED screen
Final quotations should state the exact module model, complete-screen resolution, electrical load and selected cabinet or structural installation method.
Installation & cabinet options
Indoor COB LED Screen Installation Options
The supporting structure can be selected around the wall, required screen dimensions, installation depth and maintenance access.
GI / MS Steel Structure
A fabricated GI or MS structure can be used for custom indoor COB LED screen sizes, wall openings and project-specific mounting requirements.
Magnetic Module Installation
Magnetic installation can be used with a compatible steel-backed structure to provide convenient access to the COB LED modules.

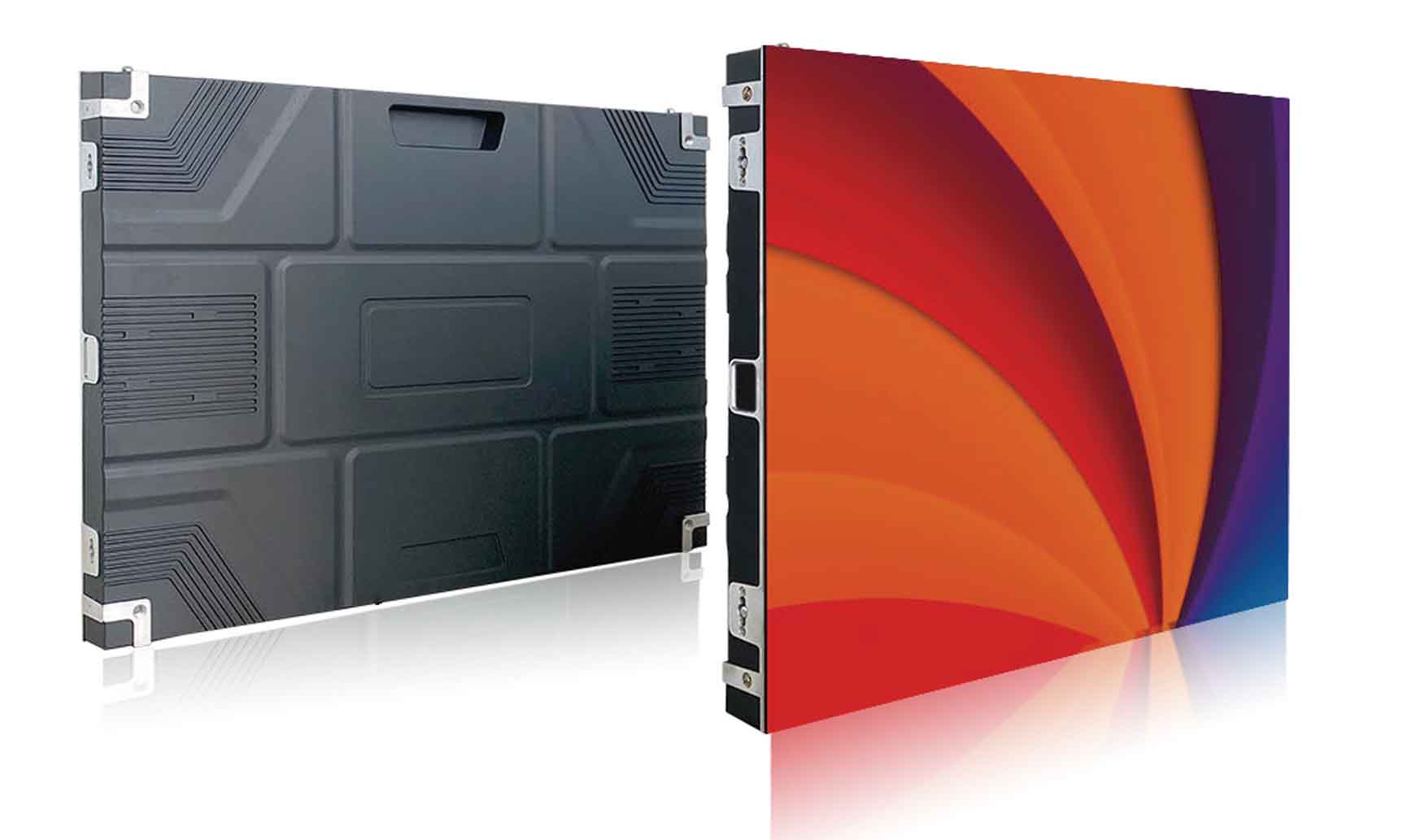

640 × 480 mm Aluminium Cabinet

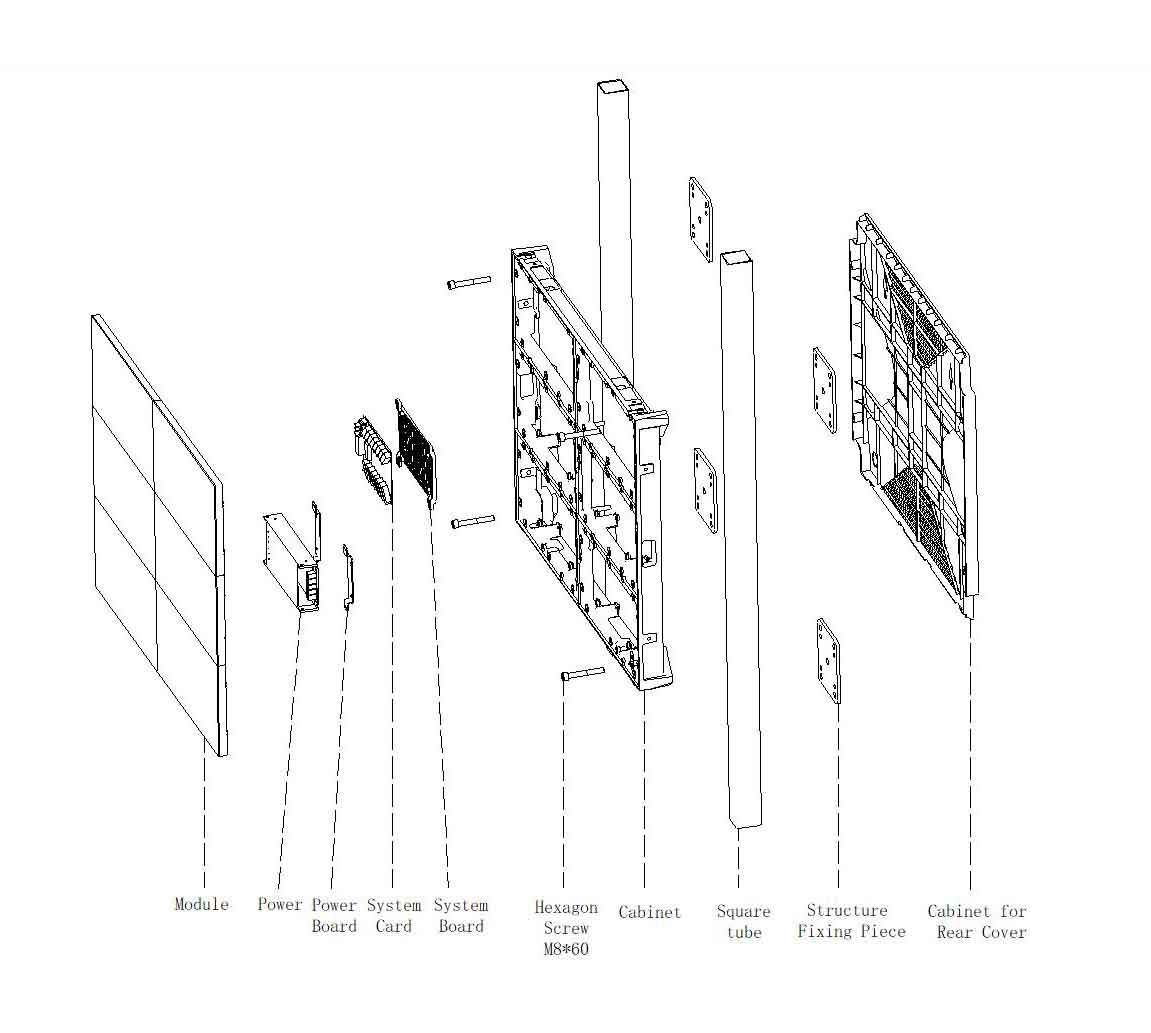

The standard cabinet uses six 320 × 160 mm modules arranged two modules wide by three modules high.
Custom MS Fabrication
Purpose-built structures can support recessed screens, special wall depths, architectural integration and custom maintenance access.

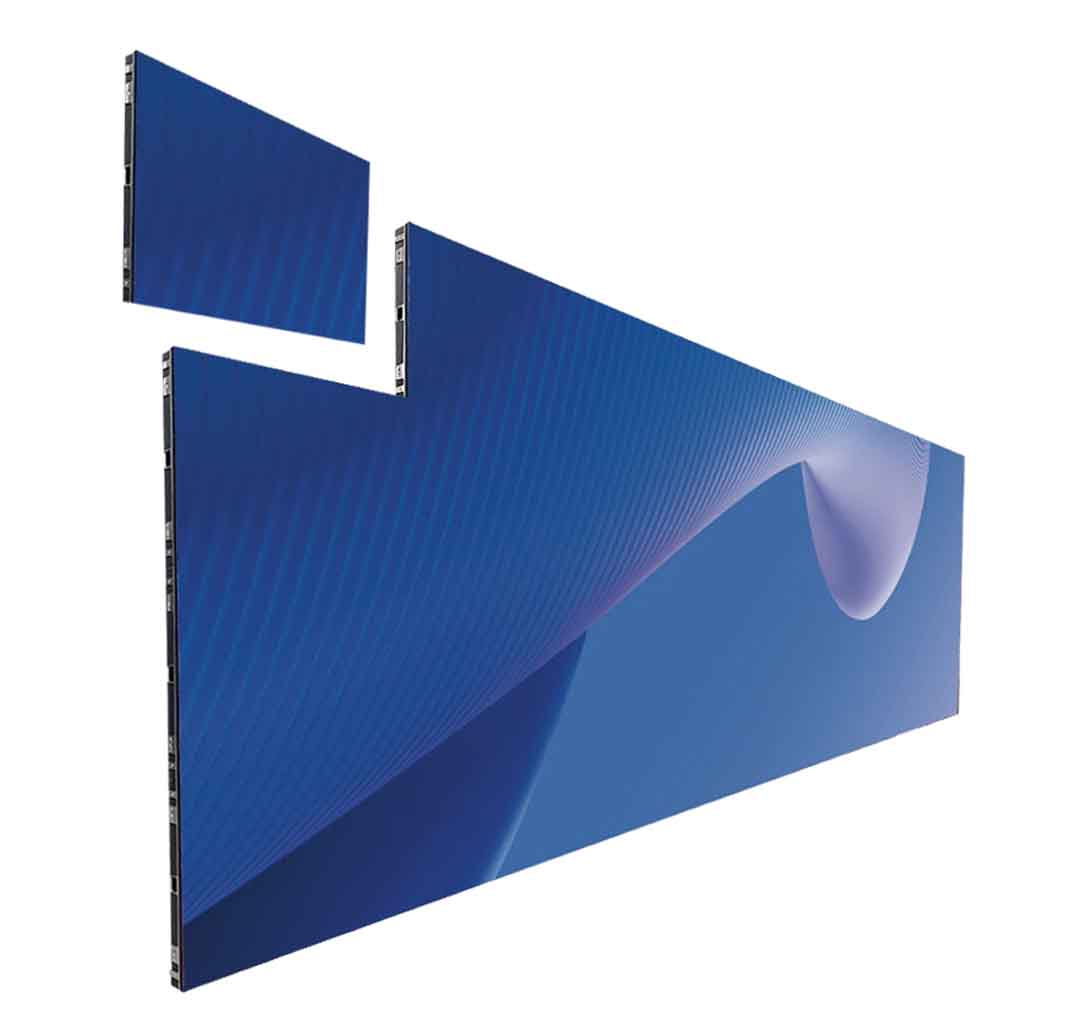

Standard cabinet configuration

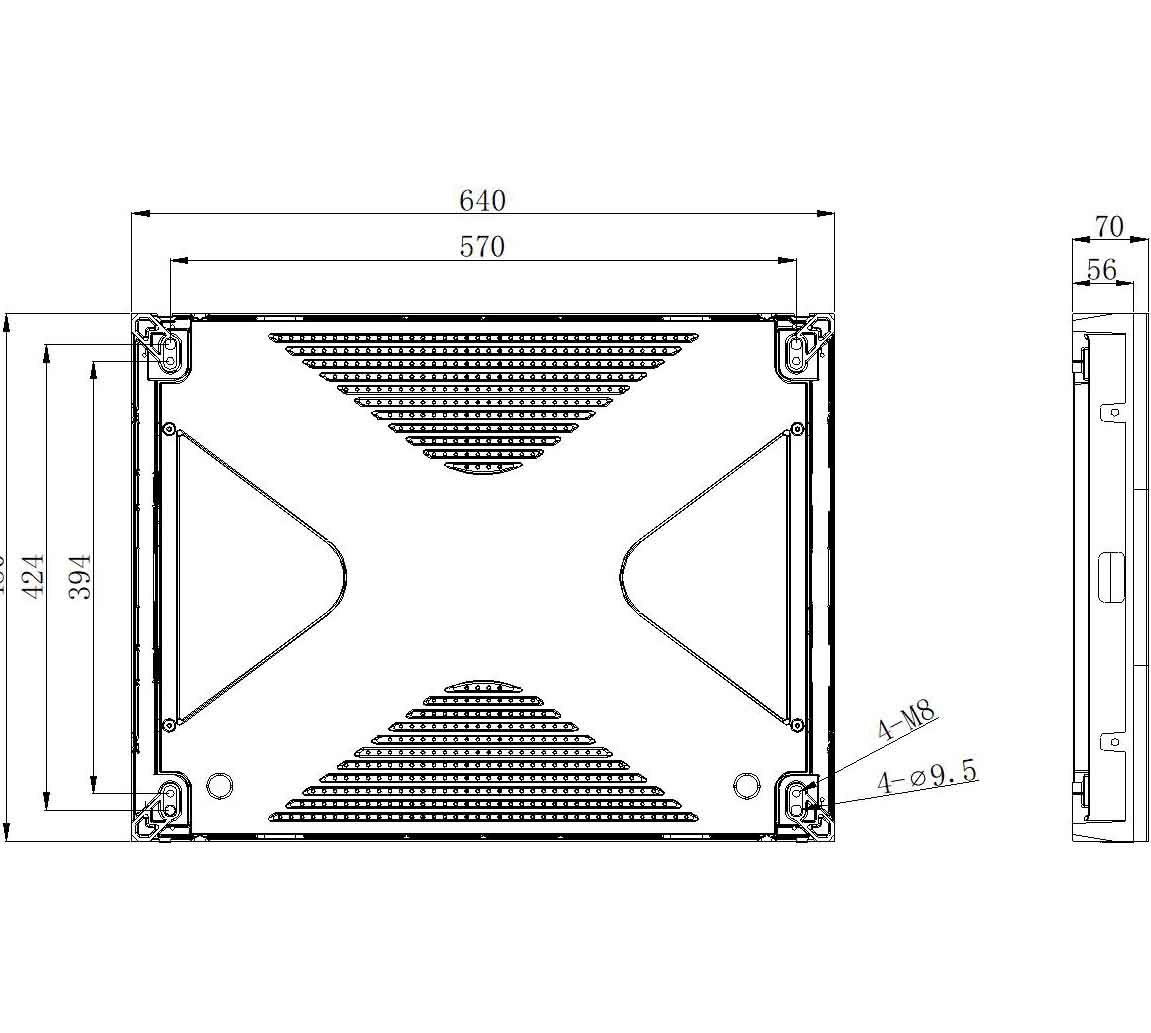

640 × 480 mm COB LED Screen Cabinet
Six 320 × 160 mm modules form one 640 × 480 mm cabinet. The physical cabinet size remains the same while the pixel resolution changes according to the selected pitch.
| Pixel pitch | 640 × 480 mm cabinet resolution |
|---|---|
| P1.25 | 512 × 384 pixels |
| P1.5 | 416 × 312 pixels |
| P1.8 | 344 × 258 pixels |
The resolution of the complete indoor COB LED screen is calculated from the total number of modules or cabinets across its final width and height.
Applications
Where Indoor COB LED Screens Are Used
Indoor COB LED Screens are particularly useful where viewers are close to the screen and detailed content needs to remain clear across a large image area.
Boardrooms & Meeting Rooms
Fine-pitch presentation screens for corporate information, presentations and video conferencing.
Control & Monitoring Rooms
High-resolution screens for dashboards, operational data, CCTV and monitoring applications.
Premium Retail & Showrooms
Detailed branded content and product visuals for close-viewing commercial spaces.
Studios & Presentation Spaces
Fine-pitch screens for presentation, monitoring and video-production environments.
Corporate Lobbies
Large seamless visual surfaces for reception areas and visitor-facing corporate spaces.
Auditoriums & Education
Detailed presentation screens for auditoriums, lecture spaces and indoor educational facilities.
Frequently asked questions
Indoor COB LED Screen FAQs
Which Indoor COB LED Screen pixel pitches are available?
Epix® Indoor COB LED Screens are available in P1.25, P1.5 and P1.8 configurations.
What is the module size?
All three series options use a 320 × 160 mm COB LED module format.
Is P1.5 exactly 1.5 mm?
P1.5 is used as the customer-facing category name. The representative P1.5-class hardware has an actual pitch of 1.538 mm and a module resolution of 208 × 104 pixels.
Can Indoor COB LED Screens use magnetic module fixing?
Yes. Magnetic mounting can be used where the supporting structure is designed with a suitable steel-backed mounting surface.
Can the screen use a 640 × 480 mm aluminium cabinet?
Yes. The standard cabinet option uses six 320 × 160 mm modules in a 2 × 3 arrangement.
How is the complete screen resolution calculated?
Complete-screen resolution depends on the selected pixel pitch and the total number of modules or cabinets used across the finished screen.
Plan Your Indoor COB LED Screen
Share the required screen width and height, nearest viewing position, installation location and a photograph or drawing of the wall.
Epix® will recommend the suitable COB pixel pitch, calculate the complete screen resolution and prepare the cabinet or custom-structure installation scope.
