Epix® Indoor Rental Series
Indoor Rental LED Screen Panels
Die-cast aluminium rental LED panels for stages, conferences, exhibitions, hotel events and indoor productions.
Available in 500 × 500 mm and 500 × 1000 mm cabinets, the Epix® Indoor Rental LED Screen Panels support hanging and stacking configurations with front and rear maintenance.
Pixel pitch & resolution
Compare P2.6, P2.9 and P3.91 Indoor Rental LED Screen Panels
Each model uses a 250 × 250 mm LED module. The 500 × 500 mm cabinet contains a 2 × 2 module arrangement, while the 500 × 1000 mm cabinet uses a 2 × 4 arrangement.
| Specification | P2.6 | P2.9 | P3.91 |
|---|---|---|---|
| Actual pitch | 2.604 mm | 2.976 mm | 3.91 mm |
| LED type | SMD1515 | SMD1515 | SMD2121 |
| Module size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Module resolution | 96 × 96 px | 84 × 84 px | 64 × 64 px |
| Calculated pixel density | 147,456 px/m² | 112,896 px/m² | 65,536 px/m² |
| 500 × 500 mm resolution | 192 × 192 px | 168 × 168 px | 128 × 128 px |
| 500 × 1000 mm resolution | 192 × 384 px | 168 × 336 px | 128 × 256 px |
Module and cabinet resolutions are calculated from the specified module dimensions and pixel pitches. Complete-screen resolution depends on the final number of cabinets across the LED wall.
Rental cabinet sizes

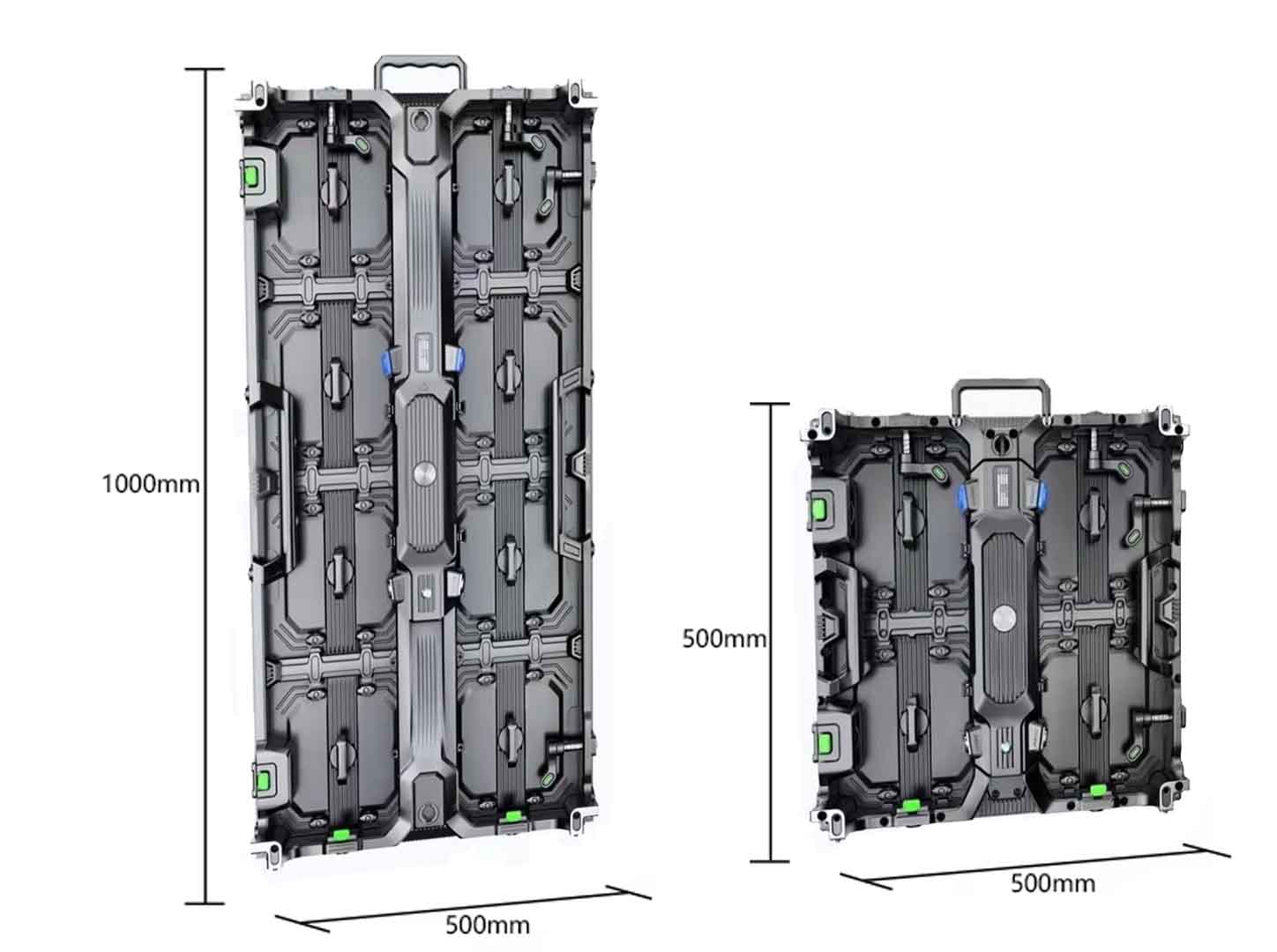

500 × 500 mm & 500 × 1000 mm Panels
Both cabinet sizes use the same 500 mm width, allowing 500 × 500 mm and 500 × 1000 mm rental LED panels to be combined within the same screen layout where required.
| Cabinet material | Die-cast aluminium |
|---|---|
| 500 × 500 mm weight | Approx. 6.5 kg |
| 500 × 1000 mm weight | Approx. 13 kg |
| Cabinet depth | Approx. 70 mm |
| Installation | Hanging or stacking |
| Maintenance | Front and rear access |

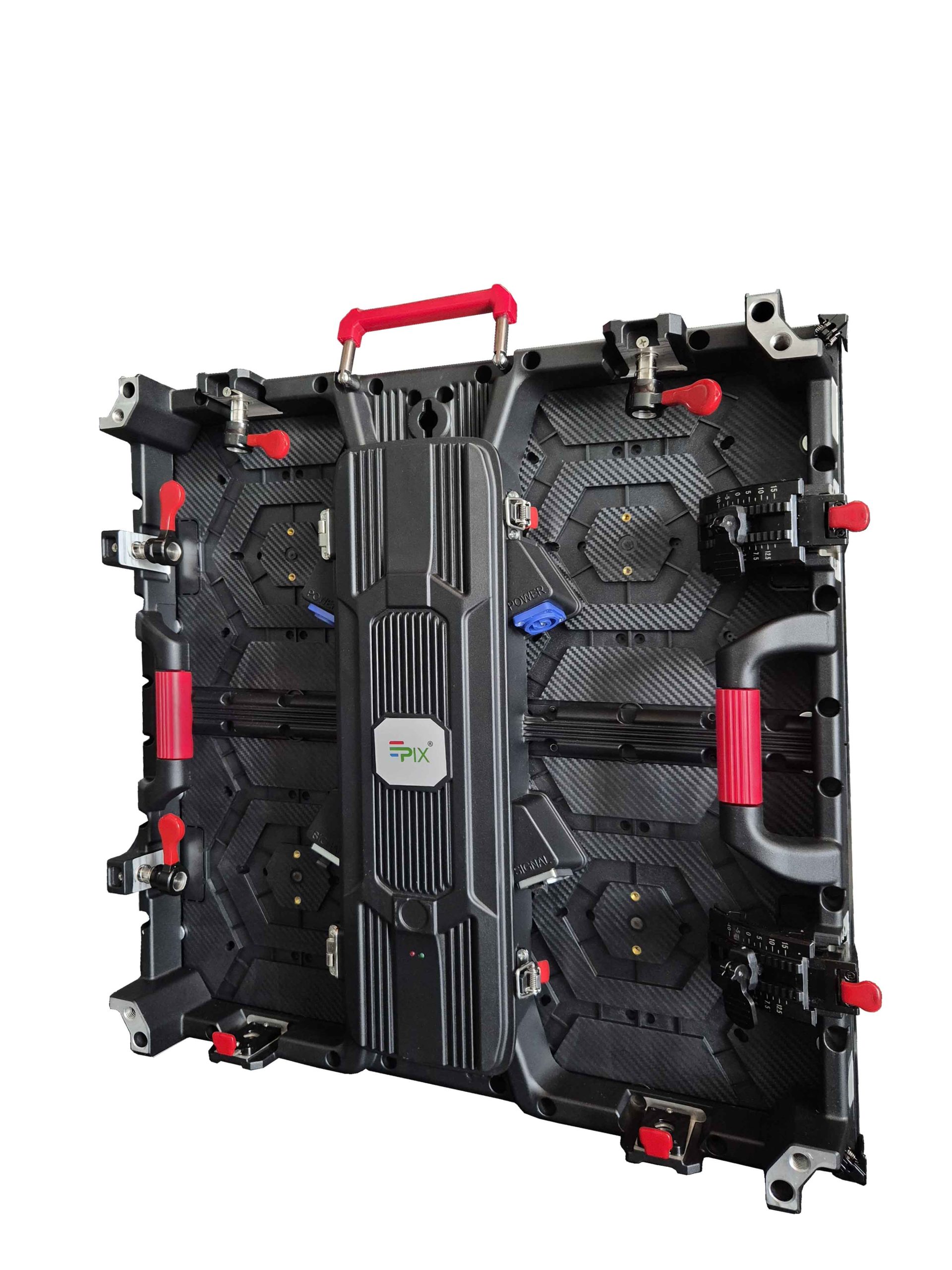

Panel construction
Designed for Repeated Event Installation
Die-cast aluminium rental cabinets are designed for modular assembly, transport, repeated installation and service access during indoor event production.
Die-Cast Aluminium Cabinet
Lightweight aluminium construction supports frequent assembly and dismantling for event and staging work.

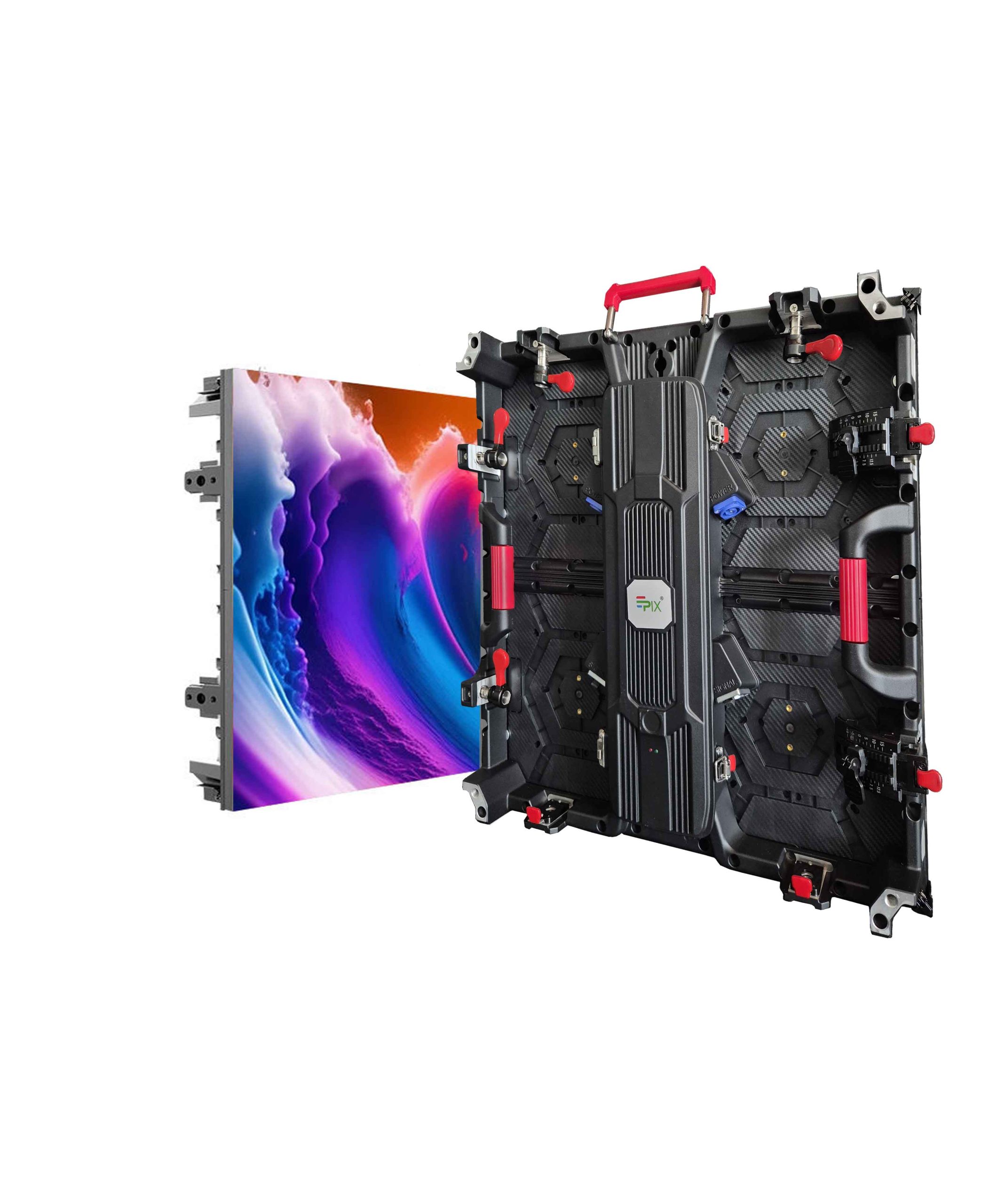

Front & Rear Maintenance
The series supports front and rear maintenance, giving event technicians flexible access according to the installation configuration.

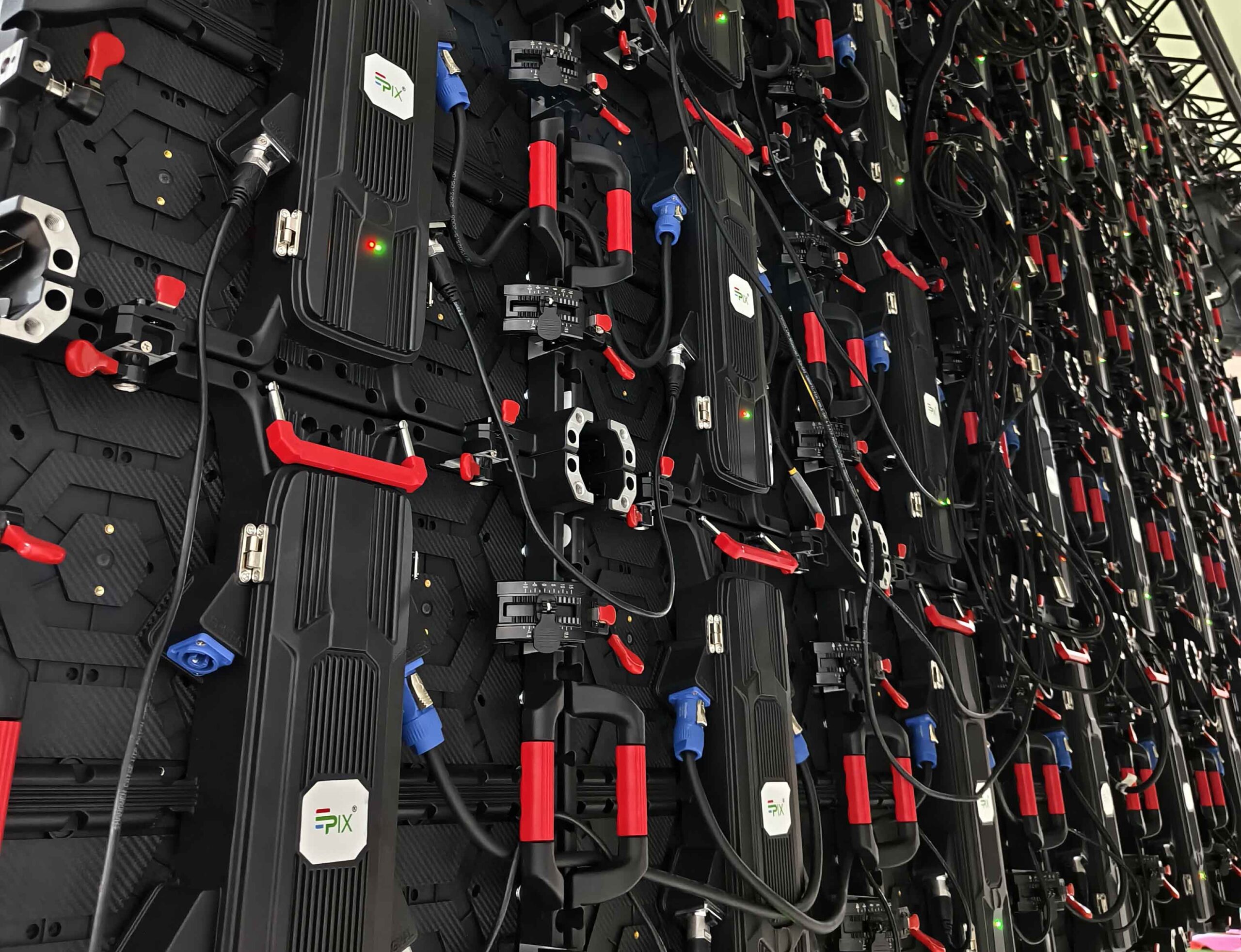

Build the Required Screen Size
Rental cabinets connect together to create the required stage or event screen dimensions while maintaining a repeatable modular format.
Technical specifications
Indoor Rental LED Screen Panel Specifications
| Specification | P2.6 | P2.9 | P3.91 |
|---|---|---|---|
| Actual pixel pitch | 2.604 mm | 2.976 mm | 3.91 mm |
| LED configuration | SMD1515 | SMD1515 | SMD2121 |
| Module size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Cabinet sizes | 500×500 / 500×1000 mm | 500×500 / 500×1000 mm | 500×500 / 500×1000 mm |
| Cabinet material | Die-cast aluminium | Die-cast aluminium | Die-cast aluminium |
| Cabinet weight | 6.5 / 13 kg | 6.5 / 13 kg | 6.5 / 13 kg |
| Greyscale | 14 / 16 bit | 14 / 16 bit | 14 / 16 bit |
| Refresh rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Indoor brightness | 600–1000 nits | 600–1000 nits | 600–1000 nits |
| Scanning | 1/32 | 1/28 | 1/16 |
| Viewing angle | 160° H / 160° V | 160° H / 160° V | 160° H / 160° V |
| Maximum power | 800 W/m² | 800 W/m² | 800 W/m² |
| Average power | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² |
| Installation | Hanging / stacking | Hanging / stacking | Hanging / stacking |
| Maintenance | Front / rear | Front / rear | Front / rear |
Event applications
Indoor Rental LED Panels for Stages & Events
Rental LED screen panels are designed for temporary, repeatable installations where screens must be assembled, operated and dismantled between events.

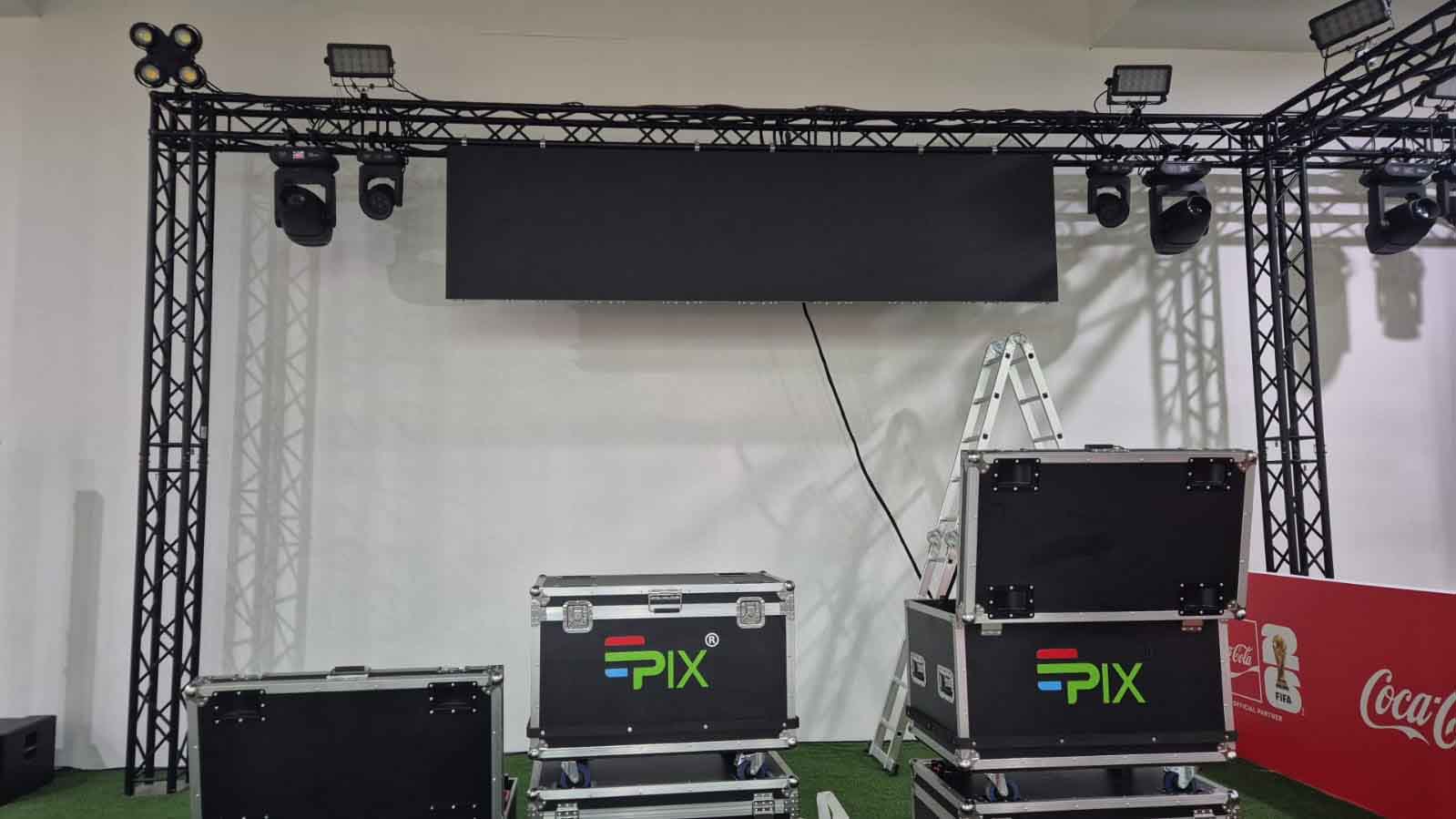

Stage LED Screens
Modular indoor LED screens for conferences, presentations, entertainment and stage productions.

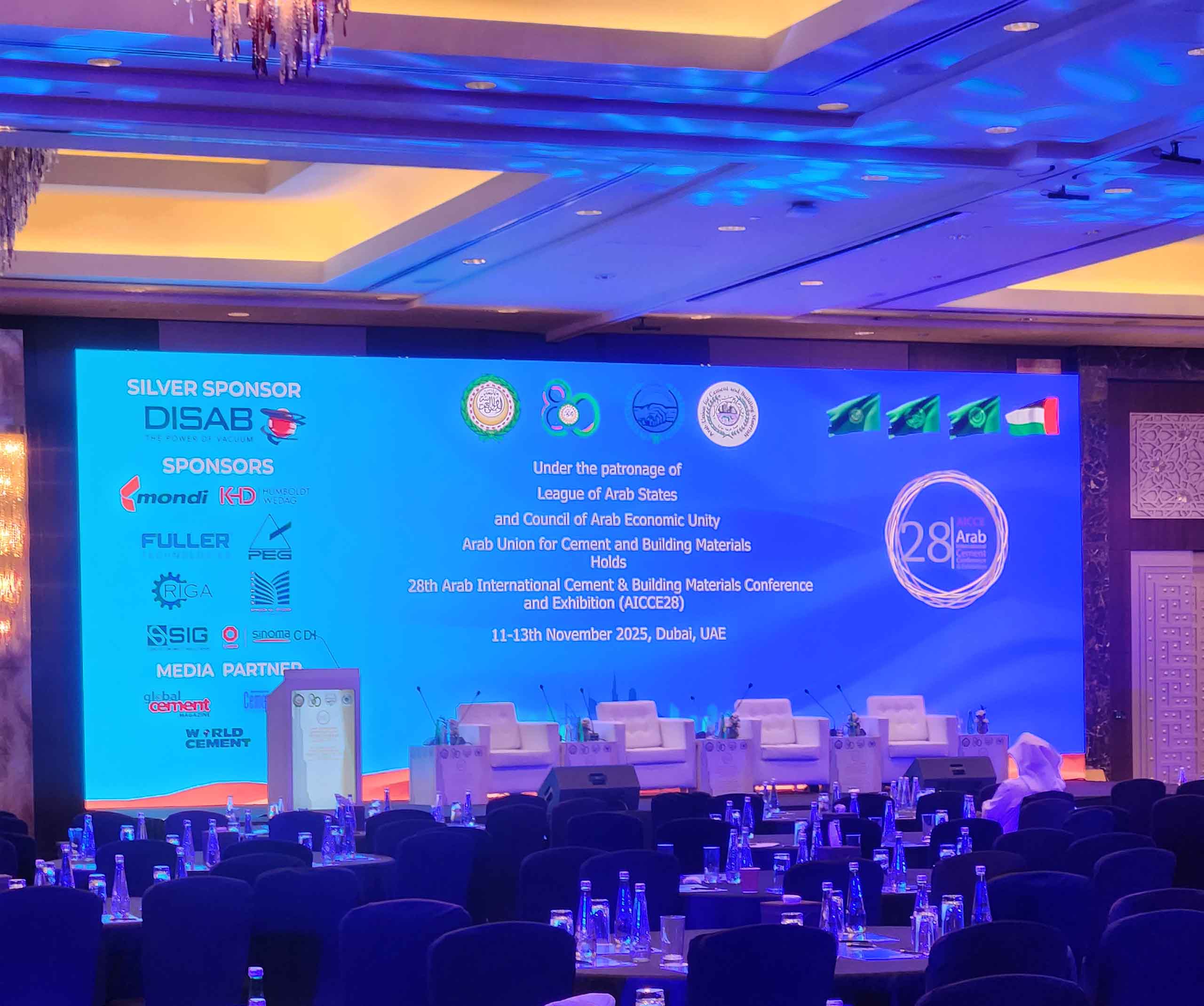

Conference & Event LED Screens
High-refresh indoor screens for presentations, branding, event video and live production content.

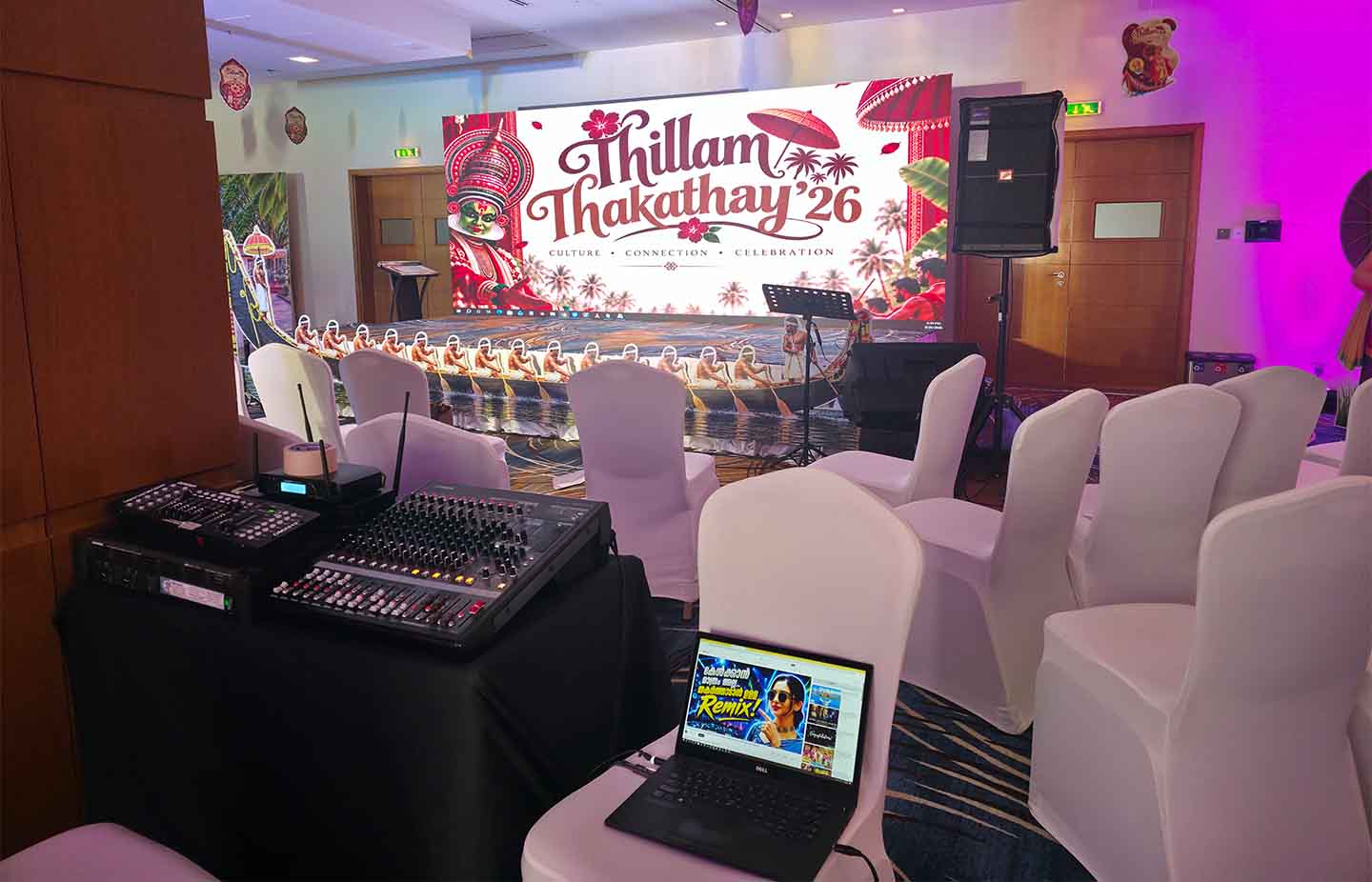

Hotel & Hospitality Events
Rental cabinet systems can be configured for ballrooms, hospitality events, exhibitions and indoor entertainment venues.
Epix® Video
See an Indoor Rental LED Screen in Action
Watch this Epix® video to see an indoor rental LED screen used for stage and event applications.
Product or service?
Buying Rental Panels vs Hiring an LED Screen
This page covers Epix® indoor rental LED panels as hardware for event companies, AV integrators, production companies and customers purchasing their own modular LED system.
If you need a screen only for a temporary event, Epix® also provides LED screen rental services including equipment, setup and technical support.
Frequently asked questions
Indoor Rental LED Screen Panel FAQs
Which indoor rental LED panel pitches are available?
The current series includes P2.6, P2.9 and P3.91. Their actual pitches are approximately 2.604 mm, 2.976 mm and 3.91 mm respectively.
Which cabinet sizes are available?
The series is available in 500 × 500 mm and 500 × 1000 mm die-cast aluminium cabinets.
Can 500 × 500 and 500 × 1000 panels be combined?
Both formats share a 500 mm cabinet width and can be used when planning compatible screen layouts, subject to the selected product configuration.
Can the panels be hung from a truss?
The series supports hanging and stacking installations. The supporting system must be designed for the complete screen dimensions, weight and site conditions.
Do the panels support front and rear maintenance?
Yes. The supplied specification supports both front and rear maintenance access.
What is the brightness of the indoor rental panels?
The indoor configuration is specified at approximately 600–1000 nits depending on the selected configuration.
Build Your Indoor Rental LED System
Tell us the required screen dimensions, preferred pixel pitch, number of panels and whether the system will be used for hanging, stacking or both.
Epix® can configure the panel quantity, complete screen resolution, LED control system and accessories for your setup.
