Ultra-Fine Pixel Pitch COB LED Displays by Epix®
Pixelis Series is Epix®'s premium COB LED display range, available in 0.625, 0.9375 and 1.25 for boardrooms, control rooms, broadcast studios, luxury retail and mission-critical indoor environments.
Request Consultation
Premium COB LED Display Platform
The Pixelis Series by Epix® is designed for projects where image clarity, close viewing distance, reliability and seamless display performance are essential.
Built with Flip-Chip COB technology and a professional 16:9 cabinet platform, Pixelis delivers high contrast, strong surface protection, high refresh rate and long-term operational stability.
Available Models
- Pixelis 0.625 – ultra-close premium viewing
- Pixelis 0.9375 – boardrooms and control rooms
- Pixelis 1.25 – commercial fine-pitch display projects
0.625, 0.9375 and 1.25 mm pixels
Pixelis 0.625
Designed for ultra-close viewing environments requiring maximum image detail, exceptional clarity and premium visual performance.
- Control rooms
- Broadcast studios
- Luxury boardrooms
- High-end home cinema
Pixelis 0.9375
A premium ultra-fine pitch COB LED solution for corporate, government and mission-critical display applications.
- Executive boardrooms
- NOC / SOC centers
- Government facilities
- Corporate headquarters
Pixelis 1.25
A professional COB LED display solution for commercial indoor projects requiring excellent image quality and better project value.
- Meeting rooms
- Retail stores
- Hospitality spaces
- Reception areas
Flip-Chip COB Performance & Protection
Pixelis COB LED displays are engineered with a protected LED surface and high-performance Flip-Chip COB architecture, making them suitable for premium close-viewing environments and continuous operation.
Designed for Premium Indoor Spaces
Control Rooms
For real-time monitoring, command centers and mission-critical visualization.
Boardrooms
For executive meetings, presentations, conferencing and collaboration.

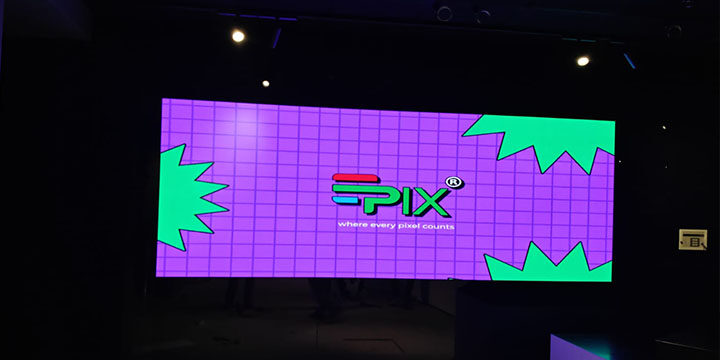

Broadcast Studios
High refresh rate and fine pixel pitch for camera-friendly production spaces.
Luxury Retail
Premium seamless displays for flagship stores, showrooms and brand spaces.
Pixelis Series Technical Specifications
| Specification | Pixelis 0.6 | Pixelis 0.9 | Pixelis 1.2 |
|---|---|---|---|
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm |
| LED Technology | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB |
| Cabinet Size | 600 × 337.5 mm | 600 × 337.5 mm | 600 × 337.5 mm |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Service Access | Full Front Service | Full Front Service | Full Front Service |
| Refresh Rate | ≥7680Hz | ≥7680Hz | ≥7680Hz |
| Brightness | ≥1000 nits | ≥1000 nits | ≥1000 nits |
| Contrast Ratio | ≥20,000:1 | ≥20,000:1 | ≥20,000:1 |
| Viewing Angle | 170° / 170° | 170° / 170° | 170° / 170° |
| Cabinet Material | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Lifespan | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Recommended Viewing Distance | 0.6m+ | 1.0m+ | 1.5m+ |

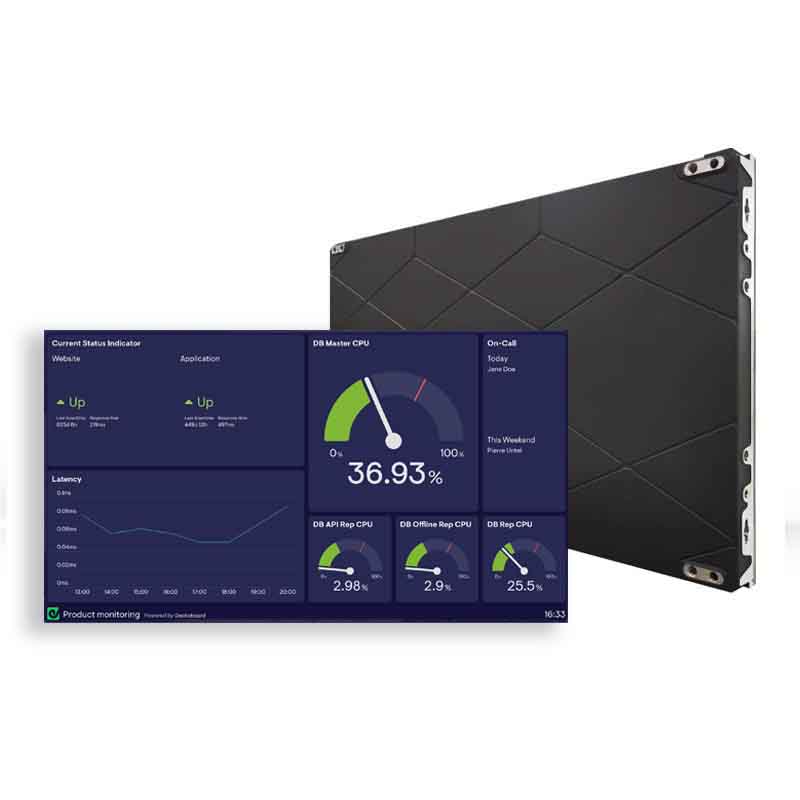

COB Module & Cabinet Design
Pixelis cabinets are designed for seamless indoor video wall installations with precise alignment, slim cabinet profile, front maintenance and professional system integration.
- 600 × 337.5 mm cabinet platform
- 16:9 cabinet architecture
- Front service maintenance
- COB protected LED surface
- Suitable for fixed indoor installation
Epix® LED Display Projects
Complete LED Display Solution
Pixelis Series COB LED displays are supplied, installed, configured and supported by Epix Technologies LLC, providing clients with a complete turnkey LED display solution.
Start Your Pixelis Project
Speak with Epix® for Pixelis COB LED display consultation, screen sizing, technical proposal and project quotation.
Request Quotation
