Epix® Outdoor Premium Series

Outdoor Premium LED Displays

Outdoor LED panels for curved-corner screens, naked-eye 3D advertising and commercial displays.

P2.9 P3.9 P4.8

Combine high-brightness outdoor display panels with a flat or optional corner configuration for your advertising concept. Choose from three cabinet sizes within one Premium Series.

Request a quotation Explore 3D corner displays

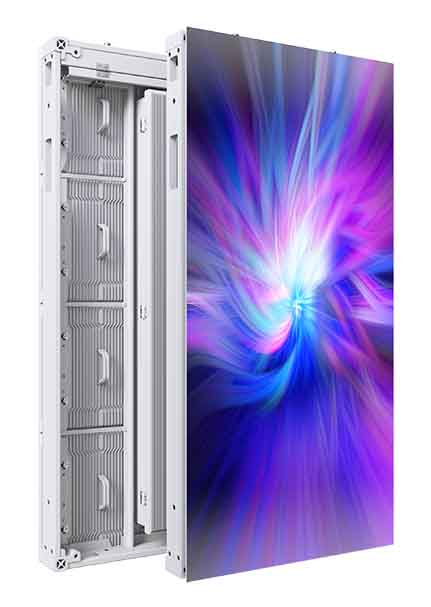

Front display face and rear cabinet of an Epix Outdoor Premium Series LED panel

Up to 7,000 nits High brightness

IP66 Specified protection rating

Front + rear Total service access

3 cabinet sizes 500 mm width; three heights

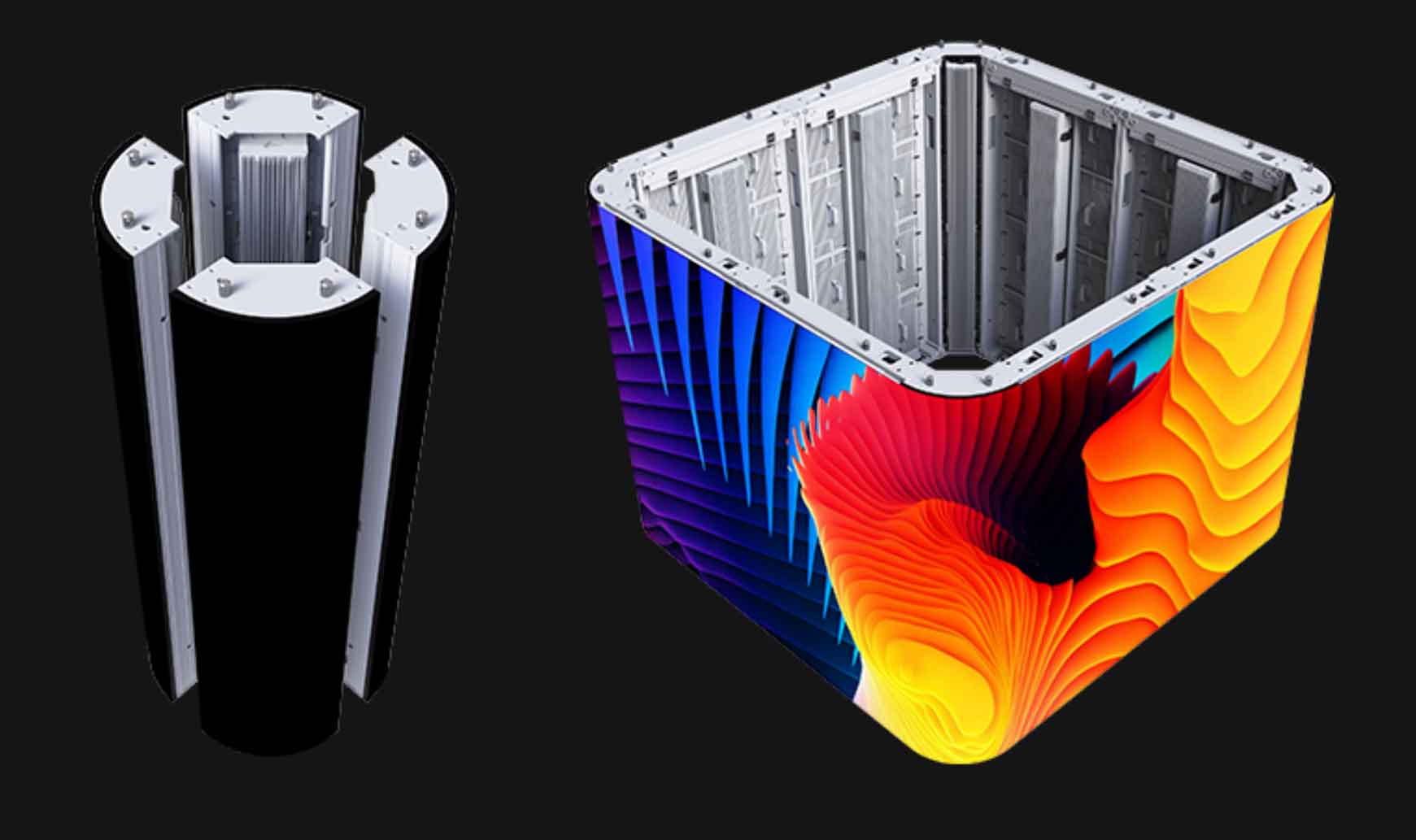

Premium Series LED display illustration showing a curved-corner cabinet configuration — Curved-corner product configuration shown for illustration.

Naked-eye 3D & corner screens

Turn the corner into the main attraction.

Make curved-corner LED displays the focus of a product launch, retail frontage or outdoor advertising installation. The Premium Series offers optional curved and sharp-corner configurations for these projects.

For a naked-eye 3D brief, plan the screen geometry, intended viewing position and custom content together. Specify 3D content production and playback equipment separately from the panel supply.

Choose the configuration for the concept

Discuss a flat display, curved transition or sharp-corner layout with Epix®. The required radius, corner angle and panel arrangement belong in the project specification.

Discuss a 3D display project

Die-cast aluminium cabinets

Three formats. One Premium Series.

Choose the cabinet format around your available display area and installation design. Each listed format is 500 mm wide, with heights of 500, 750 or 1000 mm.

Cabinet format	Width × height
Square	500 × 500 mm
Medium-height	500 × 750 mm
Tall	500 × 1000 mm

These are cabinet dimensions, not individual LED module dimensions or the resolution of a finished screen.

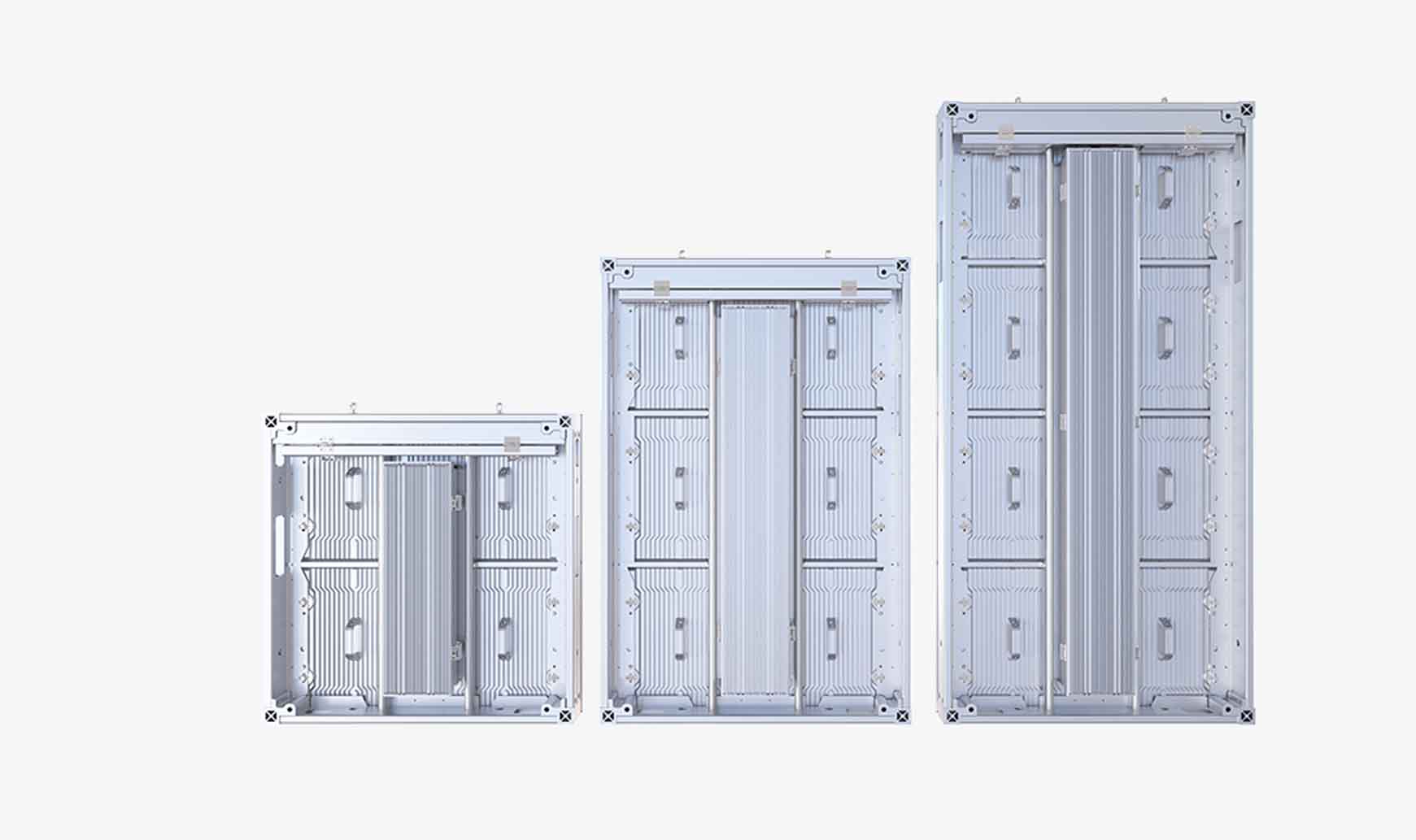

Premium Series cabinet size options: 500 by 500, 500 by 750 and 500 by 1000 millimetres

Technical specifications

Premium Series specifications

Compare the module and cabinet resolutions for P2.9, P3.91 and P4.8. The Premium Series uses 250 × 250 mm LED modules within the cabinet formats below.

Brand / series	Epix® Outdoor Premium Series
Installation type	Outdoor fixed installation
Available pixel pitches	P2.9 / P3.91 / P4.8 / P6.2
LED module size — W × H	250 × 250 mm
Cabinet sizes — W × H	500 × 500 mm / 500 × 750 mm / 500 × 1000 mm
Cabinet construction	Die-cast aluminium
Brightness	Up to 7,000 nits
Service access	Total front and rear service
Specified ingress protection	IP66
Specified flame-retardancy classification	5VB
Display configurations	Flat; optional curved and sharp-corner configurations
Complete-display resolution	Determined by the selected pixel pitch and final cabinet arrangement

Module & cabinet resolution

All resolutions below are width × height in pixels. Module resolution, cabinet resolution and complete-screen resolution describe different assembly sizes.

Specification	P2.9	P3.91	P4.8
250 × 250 mm module resolution	86 × 86 px	64 × 64 px	52 × 52 px
Pixel density — pixels/m²*	118,336	65,536	43,264
500 × 500 mm cabinet resolution*	172 × 172 px	128 × 128 px	104 × 104 px
500 × 750 mm cabinet resolution*	172 × 258 px	128 × 192 px	104 × 156 px
500 × 1000 mm cabinet resolution*	172 × 344 px	128 × 256 px	104 × 208 px

*Pixel densities are calculated from the module pixel matrices and the 250 × 250 mm module area. Cabinet resolutions are calculated for rectangular layouts of 2 × 2, 2 × 3 and 2 × 4 modules respectively. Custom curved or corner sections require their own pixel-layout confirmation. On smaller screens, swipe the comparison table horizontally.

Plan the complete display

Share the required screen dimensions, audience position and content type. The final quotation should state the complete display resolution and, for a corner installation, the pixel layout of each display face and transition.

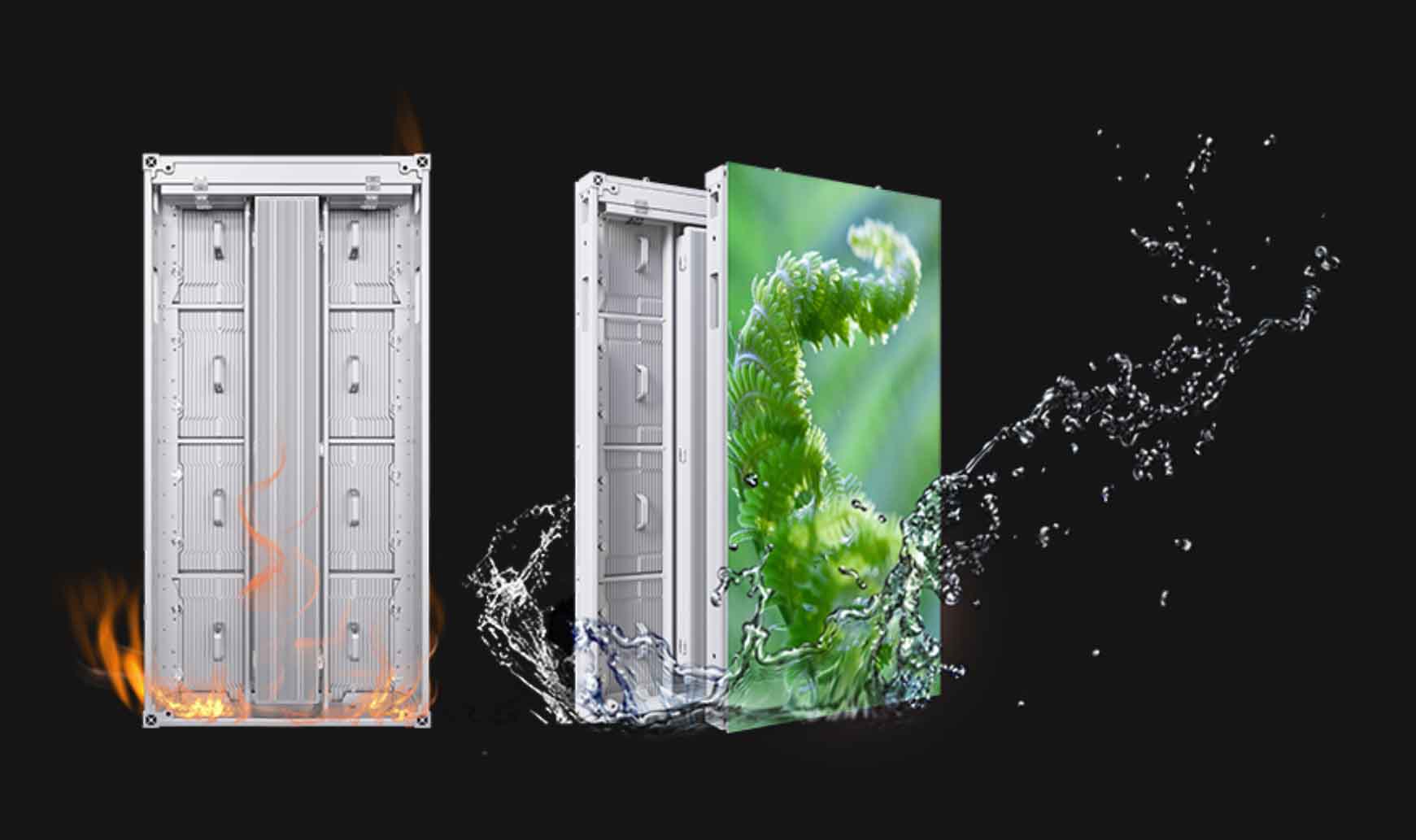

Outdoor Premium Series LED cabinet and display illustration with a water-splash graphic — Premium Series product illustration for the specified IP66 configuration.

Outdoor construction & access

Plan protection and maintenance together.

The Premium Series specification includes IP66 protection and a 5VB flame-retardancy classification. These are different characteristics, not interchangeable ratings.

5VB is a material/component flammability classification, not a claim that the complete display is fireproof. The applicable test report defines its scope.

Total front & rear service

Front and rear service options let the access arrangement form part of the installation design. Plan the supporting structure and service clearances around the selected cabinet configuration.

Explore installation services

Applications & solutions

From 3D corners to everyday advertising.

Lead with a curved-corner display concept, or choose a flat outdoor screen for signage, entertainment and commercial communication.

Naked-Eye 3D Displays

Curved-corner and sharp-corner display concepts for custom 3D advertising and product presentations.

Window & Shopfront Screens

Product videos, promotional offers and brand messages for window displays and retail frontages.

Business Advertising Signs

Outdoor advertising boards and LED digital signage for commercial promotions and business communication.

Airports & Bus Stations

Advertising, announcements and information displays, configured for the selected transport location.

Arena Displays

Video content, sponsor messages and audience information on fixed-installation venue screens.

Outdoor Entertainment

Movie, sports and entertainment screens, with the display and installation selected for the viewing area.

Plan your Premium LED display.

Share the screen width and height, installation location and audience position. For a corner display, include a site photograph or drawing showing the proposed shape.

For naked-eye 3D projects, include the content brief. Content production, playback equipment and installation scope should be identified separately in the quotation.

Request a quotation LED cost calculator

The calculator is a starting point for LED budgeting, not a final Premium Series or curved-corner system quotation.
