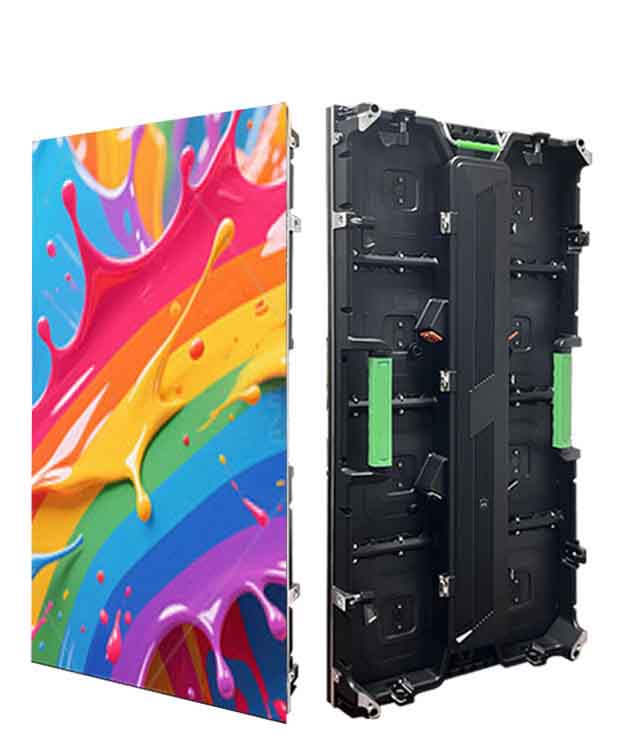

Epix® Outdoor Rental Series
Outdoor Rental LED Screen Panels
Lightweight outdoor rental LED panels for event screens, stage displays, touring systems and creative LED installations.
The Outdoor Rental Series uses 250 × 250 mm LED modules and 500 × 500 mm or 500 × 1000 mm die-cast aluminium panels, designed for front and rear service access.
Technical overview
Outdoor Rental Series specifications
Outdoor rental panels for event use, with die-cast aluminium cabinets, modular panel sizes and multiple installation possibilities.
| Available pixel pitches | P2.6 / P2.9 / P3.91 / P4.8 |
|---|---|
| LED module size | 250 × 250 mm |
| Panel sizes | 500 × 500 mm / 500 × 1000 mm |
| Cabinet material | Die-casting aluminium |
| Cabinet weight | 7.5 kg / 15 kg |
| Brightness | 1,000 / 4,500 cd/m² |
| Service access | Front / Rear |
| Refresh rate | ≥ 3840 Hz |
| Grey scale | ≥ 16 bit |
| Viewing angle (H/V) | 160° / 160° |
| Power consumption | 700 W/m² max / 200 W/m² average |
| Input voltage | 110V / 240V AC |
| Specified IP rating | IP43 / IP65 |
Brightness, protection rating and other technical values are shown exactly from the provided specification reference.
Resolution comparison
Module and panel resolution
All resolutions below are shown as width × height in pixels.
| Specification | P2.6 | P2.9 | P3.91 | P4.8 |
|---|---|---|---|---|
| 250 × 250 mm module resolution | 96 × 96 px | 86 × 86 px | 64 × 64 px | 52 × 52 px |
| 500 × 500 mm panel resolution | 192 × 192 px | 172 × 172 px | 128 × 128 px | 104 × 104 px |
| 500 × 1000 mm panel resolution | 192 × 384 px | 172 × 344 px | 128 × 256 px | 104 × 208 px |
| Pixel density — pixels/m² | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel configuration | SMD1515 / 1415 | SMD2121 / 1415 | SMD2121 / 1921 | SMD2121 / 1921 |
| Scan | 1/32 | 1/21 | 1/16 | 1/13 |
Panel resolutions are calculated from the supplied module resolutions using 2 × 2 modules for 500 × 500 mm panels and 2 × 4 modules for 500 × 1000 mm panels.

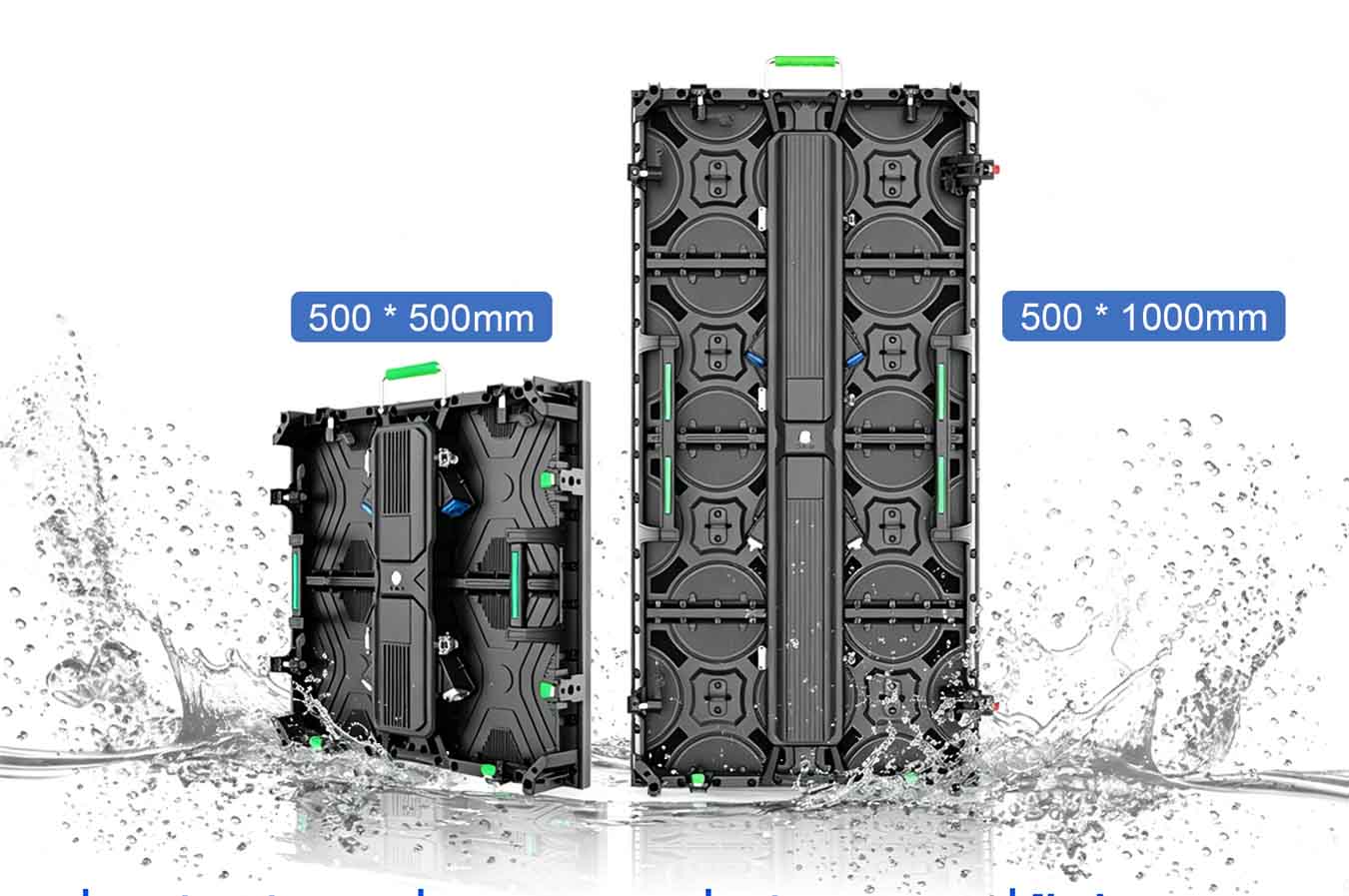

Panel size & protection
Built for outdoor rental use
The Outdoor Rental Series is available in 500 × 500 mm and 500 × 1000 mm panel sizes using a die-cast aluminium cabinet structure.
The supplied product information specifies IP43 / IP65 protection, front and rear service access, and a lightweight cabinet structure for convenient transport and installation.
Event-ready panel format
Use 500 × 500 mm panels for modular builds and 500 × 1000 mm panels where faster assembly and larger screen areas are required.
Installation applications
Flexible installation possibilities
Explore corner, curved and circular LED display concepts for your event. The illustrations show the screen shapes, panel divisions and cabinet depth.
Corner installation
Two display faces meet around a corner for stage sets, exhibition booths and creative display structures.
Curved installation
An arc-shaped LED wall for stage backdrops and event displays, with content arranged across the connected panels.
Circular / arc installation
A circular display band for event concepts. Inner- or outer-facing layouts are specified for the selected system.
Concept illustrations, not installation drawings. Available corner angles, curve radius and support arrangements must be confirmed for the selected panel configuration.
Applications
Where outdoor rental panels are used
The Outdoor Rental Series is designed for temporary setups, event stages, advertising displays and creative LED configurations.
Stage & event screens
Outdoor event displays for concerts, festivals, public events and temporary entertainment setups.
Temporary advertising screens
LED screens for exhibitions, brand activations and campaign-based outdoor advertising.
Curved & corner displays
Rental panels arranged as curved, circular or right-angle displays for eye-catching visual concepts.
Plan your outdoor rental LED screen system
Share the required screen size, event location, panel pitch, hanging or ground-support method, and whether the display requires a straight, curved or circular layout.
The final quotation should identify the selected panel pitch, total display resolution, control system, support method and installation scope.
