Epix® Indoor Flexible Series
Indoor Flexible LED Displays
Flexible LED display modules for curved, cylindrical, concave, convex and custom-shaped indoor LED screens.

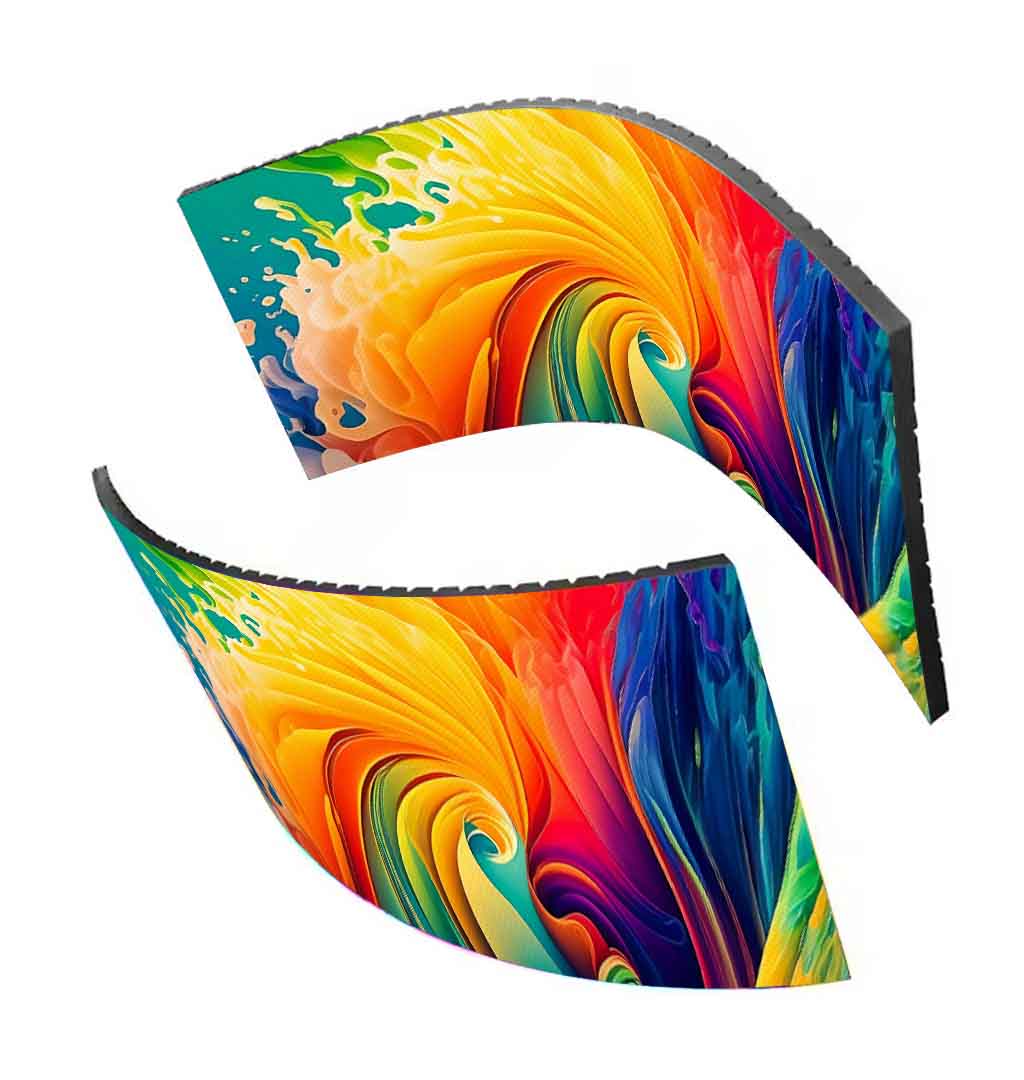

Epix® flexible LED displays use compact 320 × 160 mm soft LED modules that can follow purpose-built curved structures for creative LED screen installations.
Pixel pitch & resolution
Flexible LED Display Module Options
All four flexible LED display configurations use a 320 × 160 mm module. The selected pixel pitch changes the module resolution and resulting pixel density.
| Specification | P1.53 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|
| Module size | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm |
| Module resolution | 208 × 104 px | 172 × 86 px | 160 × 80 px | 128 × 64 px |
| Calculated pixel density | 422,500 px/m² | Approx. 288,906 px/m² | 250,000 px/m² | 160,000 px/m² |
| LED type | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Brightness | 800 cd/m² | 800 cd/m² | 800 cd/m² | 800 cd/m² |
| Refresh rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
Pixel-density values are calculated from the module pixel matrices and the 320 × 160 mm module area. Final screen resolution depends on the number of modules used in the completed display.
Technical specifications
Indoor Flexible LED Display Specifications
Shared specifications and pitch-specific power values for the current flexible LED display series.
| Specification | P1.53 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|
| Environment | Indoor | Indoor | Indoor | Indoor |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Viewing angle H / V | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| System input voltage | AC 110–220 V | AC 110–220 V | AC 110–220 V | AC 110–220 V |
| Maximum power | 700 W/m² | 650 W/m² | 650 W/m² | 700 W/m² |
| Average power | 350 W/m² | 300 W/m² | 300 W/m² | 350 W/m² |
| Control mode | Synchronous LED display system | |||
Supporting structure dimensions, curvature and final display geometry are project-specific. The 320 × 160 mm flexible module is the base display component.
Custom structures
From a Flexible LED Module to a Curved LED Screen
The final curve LED screen or cylindrical LED display is created by combining flexible LED modules with a purpose-built supporting structure designed around the required radius and shape.

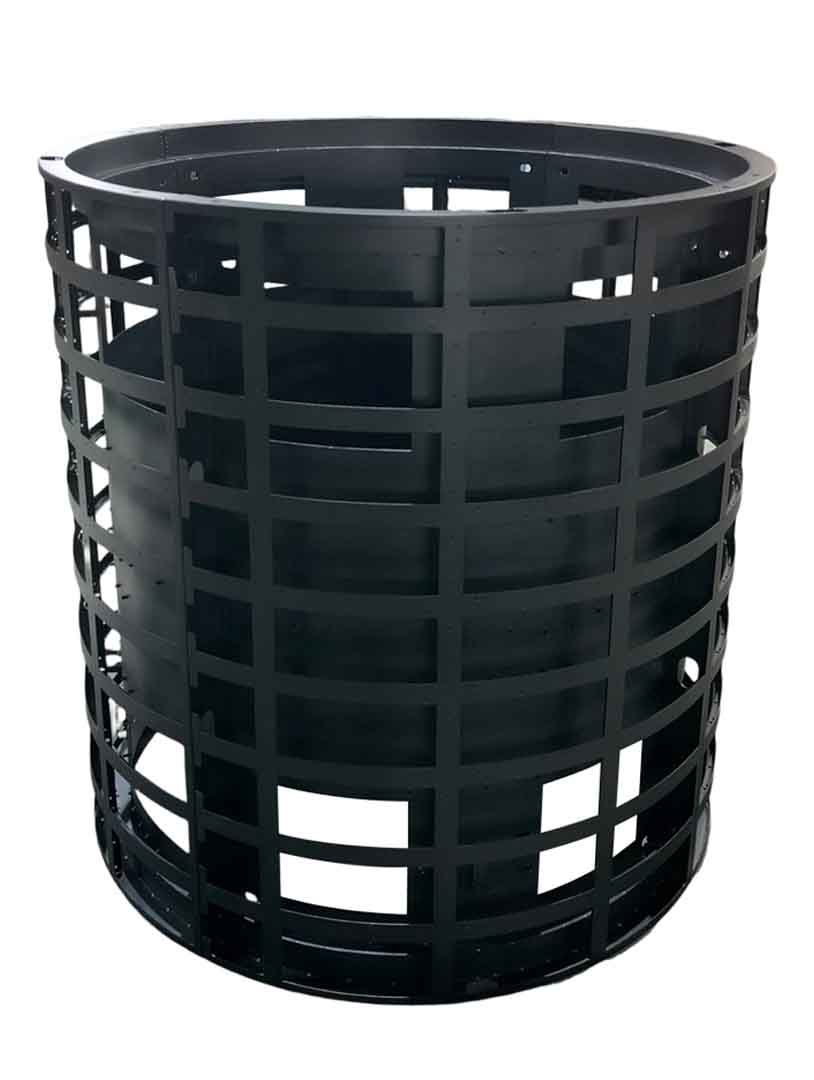

Cylinder-Shaped LED Display
Custom circular frameworks allow flexible modules to wrap around columns and cylindrical structures.

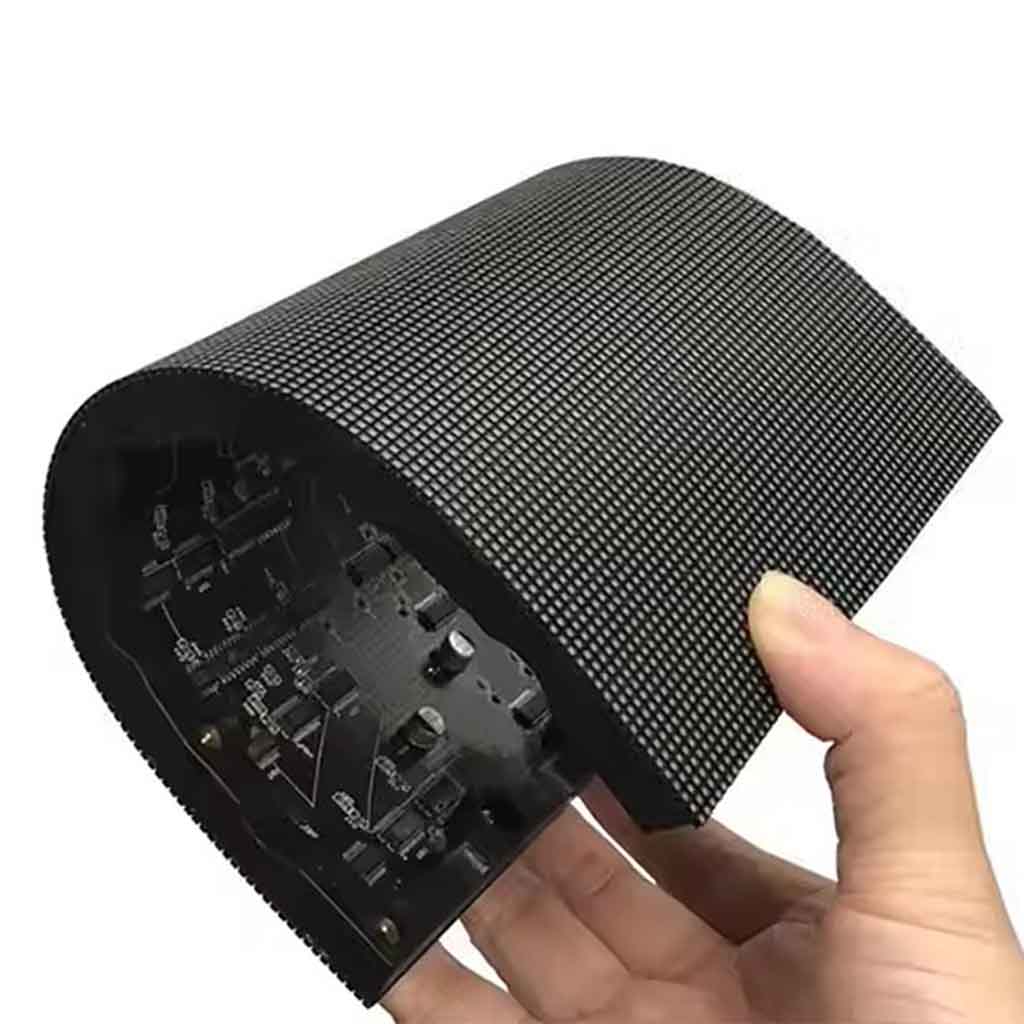

Curved LED Screen
Flexible modules can follow compatible concave or convex supporting structures for continuous curved LED display surfaces.

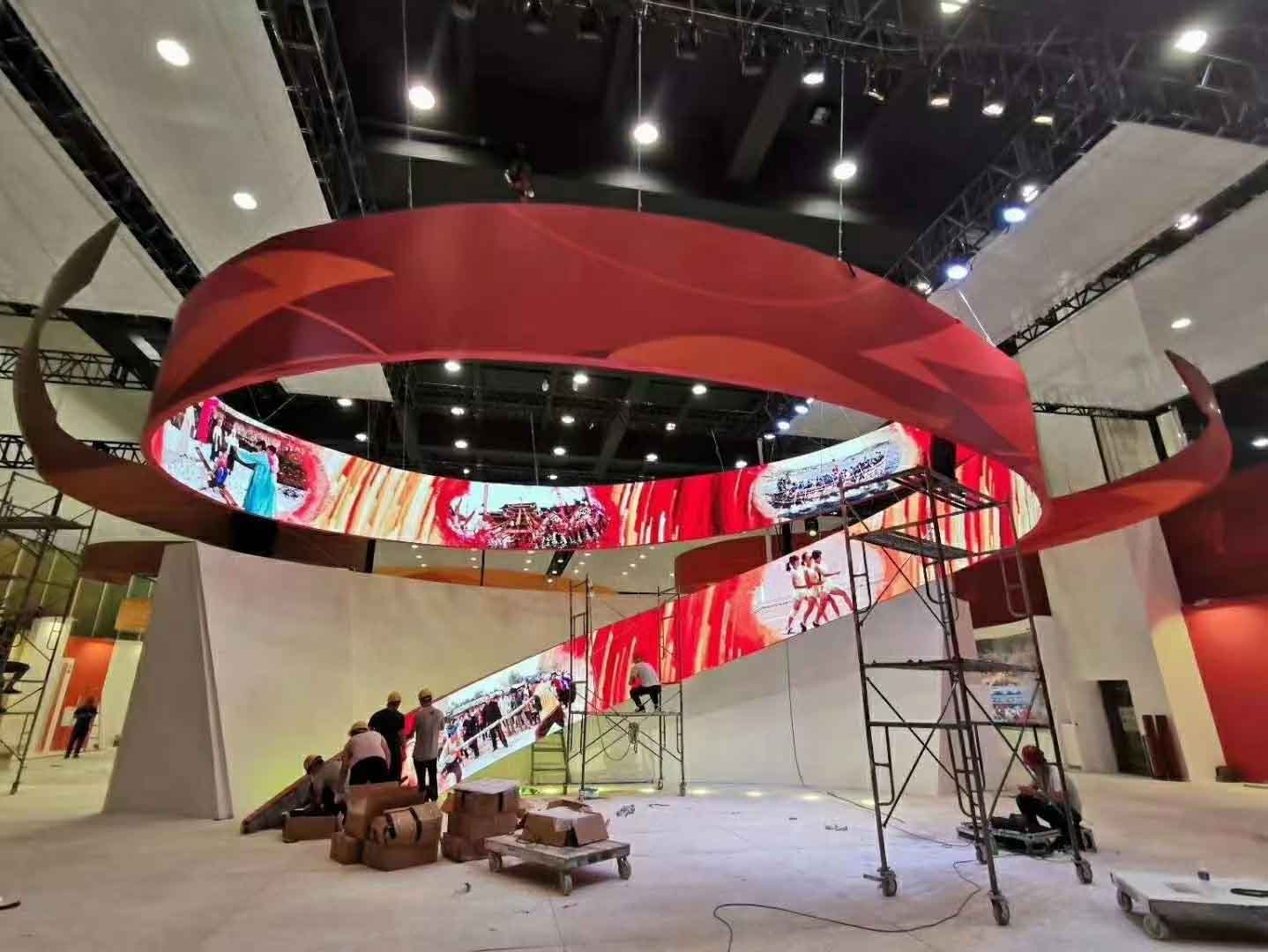

Creative LED Screen Installation
Flexible LED displays can be integrated into architectural and creative shapes where a conventional flat display would not achieve the required form.
Creative applications
What Can Be Built with a Flexible LED Display?
Flexible LED display screens are suitable for creative installations where the display surface must follow a custom shape rather than a conventional flat rectangle.
Curved LED Screens
Concave or convex displays for feature walls, retail environments and architectural installations.
Cylindrical LED Displays
Wrap columns and purpose-built circular structures with a continuous LED display surface.
LED Display Columns
Convert structural columns or custom fabricated pillars into digital display surfaces.
Date Palm Tree LED Screens
Flexible modules can be integrated with custom fabricated palm-tree-inspired and sculptural LED structures.
Wave & S-Curve LED Screens
Create flowing visual surfaces with multiple changes in direction, subject to module and structure geometry.
Creative LED Screens
Custom shapes for malls, exhibitions, entertainment, retail and architectural display concepts.
Final curvature, radius and shape are subject to the selected flexible module and engineered supporting structure.
System construction
Flexible Module + Custom Structure + LED Control System
A complete flexible LED display is more than the LED module. The final system combines the flexible modules with a fabricated supporting structure, power distribution, receiving cards and the required LED controller.
For cylindrical or creative shapes, the supporting framework is designed around the required diameter, curve or architectural geometry before the modules are installed.
Epix® Video
See a Flexible LED Screen in Action
Watch this Epix® video to see how a flexible LED display can be used for curved and creative LED screen applications.
Frequently asked questions
Flexible LED Display FAQs
Which flexible LED display pixel pitches are available?
The current Epix® Indoor Flexible LED Display range includes P1.53, P1.86, P2 and P2.5.
What size is the flexible LED module?
All four configurations use a 320 × 160 mm flexible LED module format.
What is a rubber LED module?
Rubber LED module and soft LED module are common terms used for flexible LED modules designed to follow compatible curved supporting structures.
Can flexible LED modules make a cylinder-shaped LED display?
Yes. Flexible LED modules can be installed around a purpose-built cylindrical or column structure, subject to the required diameter and module geometry.
Can a flexible LED display be concave or convex?
Yes. A compatible custom structure can create concave or convex LED screen surfaces using flexible LED modules.
Can Epix build a date palm tree LED screen?
Flexible LED modules can be used as part of a custom fabricated date-palm-inspired LED structure. The final design depends on the required shape, radius, screen area and structural engineering.
Is the supporting structure included with the module?
The supporting structure is normally designed according to the project. The final quotation can include the flexible LED modules, custom structure, LED control system, installation and commissioning.
Design a Custom Flexible LED Screen
Share the required size, curve, diameter or creative shape together with a photograph or drawing of the installation area.
Epix® can recommend the suitable pixel pitch and prepare the flexible LED module layout, supporting structure, control system and installation scope.
