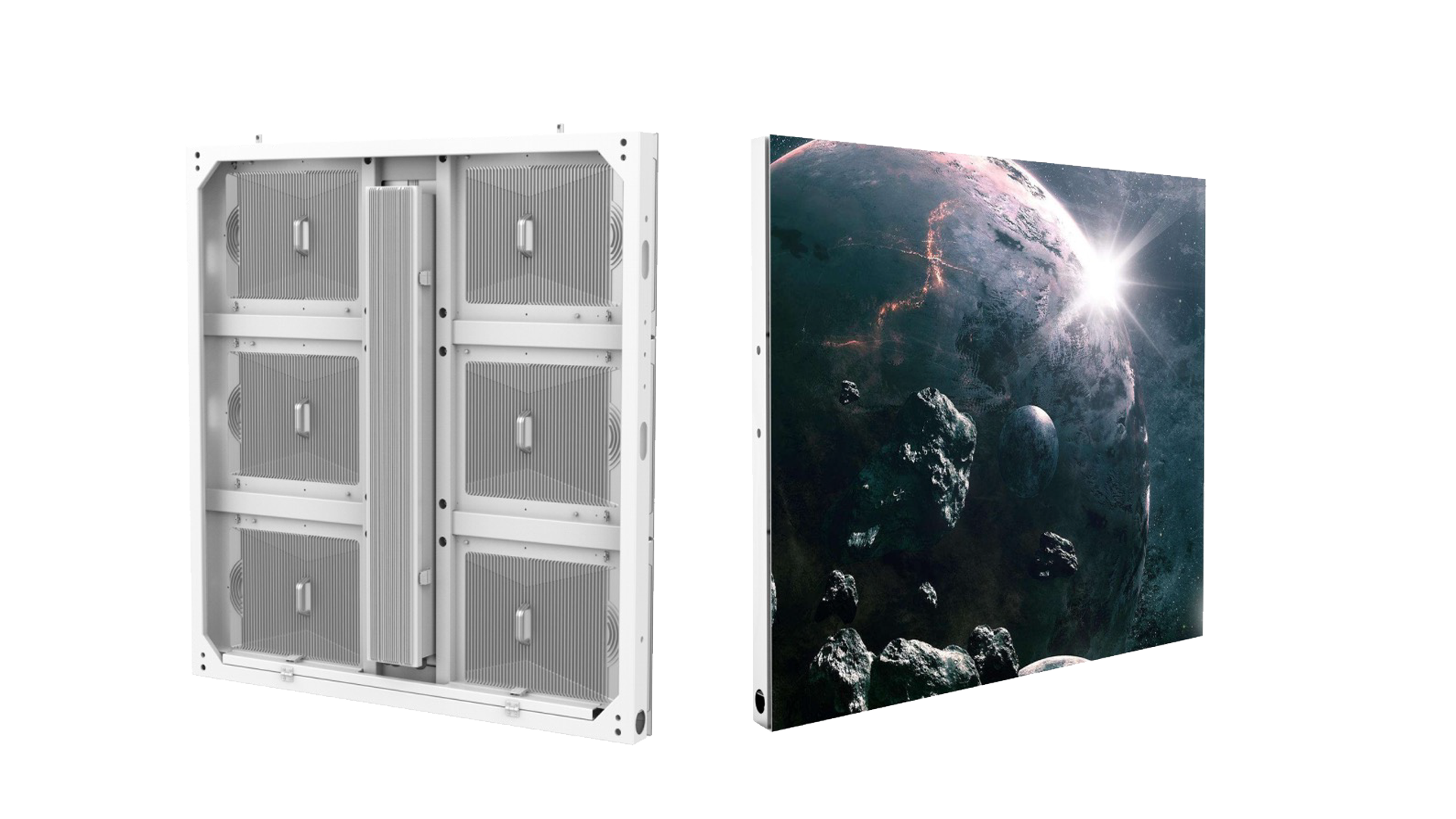

Epix® Outdoor Platinum Series
Outdoor Platinum LED Displays
High-brightness LED displays for large outdoor billboards, advertising boards and digital out-of-home media.
Choose your pixel pitch and cabinet configuration within one Epix® series, with common-cathode technology and front or rear service access.

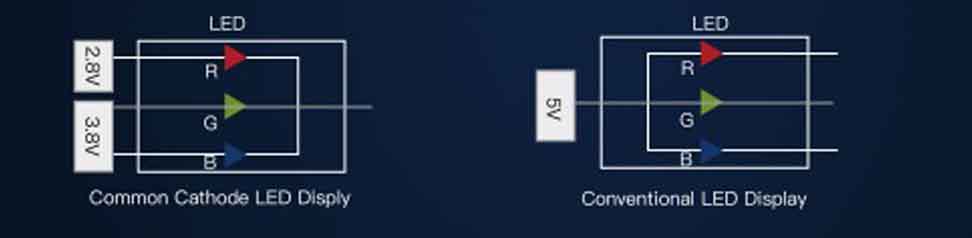

Common-cathode technology
High brightness.
Considered power design.
The Platinum Series uses Common Cathode Energy Saving (CCES) driving alongside high-brightness SMD LEDs.
The common-cathode architecture is part of the product design. Actual electricity use depends on the selected model, brightness settings, displayed content and operating schedule.
Aluminium construction & cooling
The aluminium module chassis and panel frame support heat dissipation. Air-convection paths and cooling surfaces form part of the cabinet design.
Cabinet construction
Configure the display around your site.

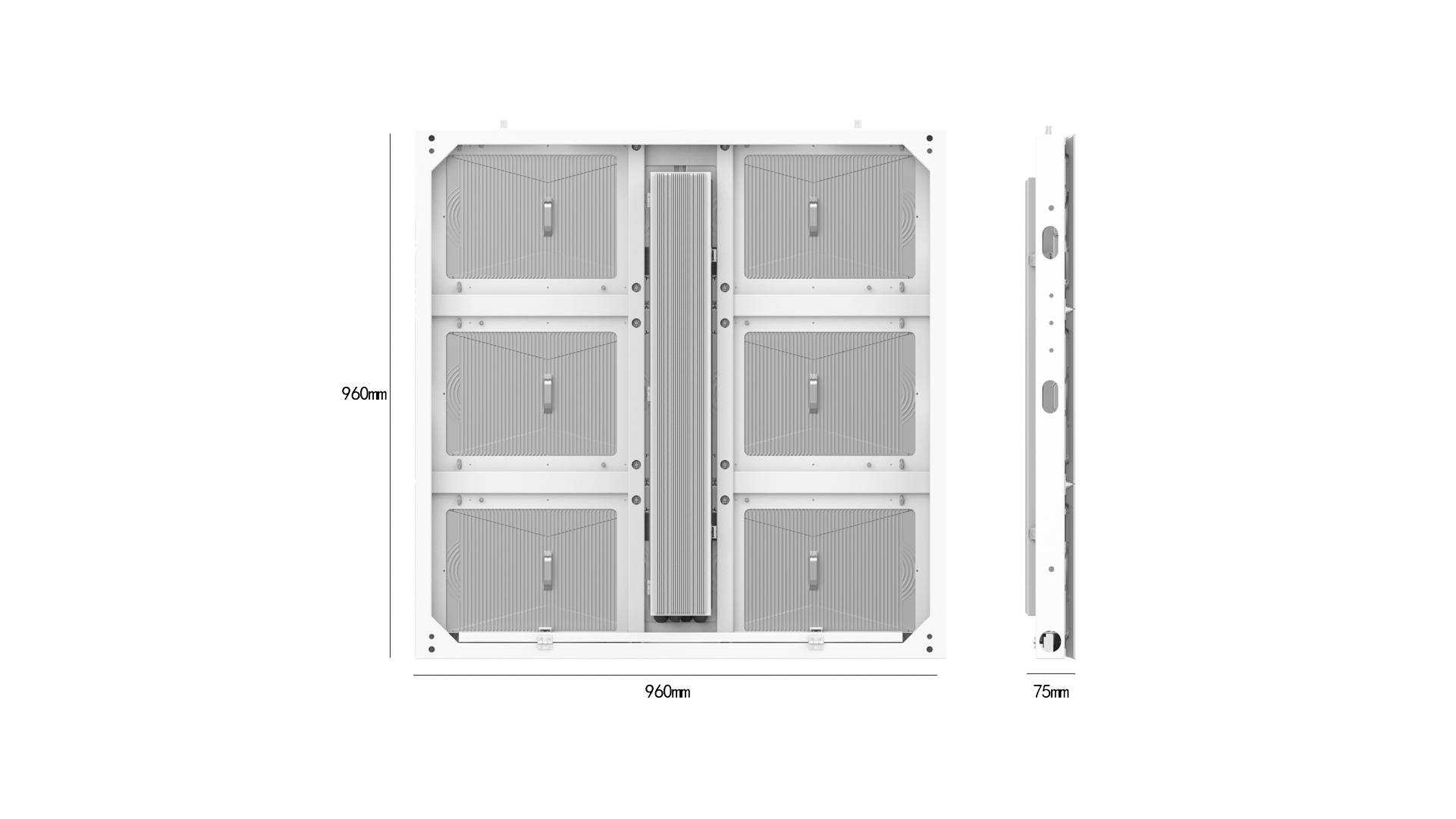

A shared 480 × 320 mm module format supports multiple cabinet sizes within the Platinum Series.
| Standard cabinet — W × H | 960 × 960 mm |
|---|---|
| LED module — W × H | 480 × 320 mm |
| Cabinet thickness | 75 mm |
| Weight per display area | 24 kg/m² |
| Module weight | 2.3 kg |
| Module chassis | Die-cast aluminium |
Available cabinet sizes — W × H, mm
Technical specifications
Compare P6.67, P8 and P10.
Choose the pixel pitch around your viewing position, content and screen dimensions. A finer pitch provides more pixels within the same display area.
| Specification | P6.67 | P8 | P10 |
|---|---|---|---|
| Series model | Platinum 6 | Platinum 8 | Platinum 10 |
| Nominal pixel pitch | 6.67 mm | 8 mm | 10 mm |
| Pixel density — pixels/m² | 22,500 | 15,625 | 10,000 |
| LED package | SMD2727 | SMD3535 | SMD3535 |
| Module resolution — W × H | 72 × 48 pixels | 60 × 40 pixels | 48 × 32 pixels |
| 960 × 960 mm cabinet resolution* | 144 × 144 pixels | 120 × 120 pixels | 96 × 96 pixels |
| Brightness | >10,000 nits | ||
| LED refresh rate | 3,840 Hz | ||
| Grayscale | 14–16 bit | ||
| Viewing angle — H / V | 160° / 120° | ||
| Complete-screen resolution | Determined by the final cabinet arrangement | ||
*Cabinet resolutions are calculated for a 960 × 960 mm cabinet using two modules across and three modules high. These are cabinet resolutions, not the resolution of every finished screen. On smaller screens, swipe the table horizontally.
Viewing-distance planning
Share the nearest audience position and typical viewing distance with Epix®. Screen size, pixel pitch and the size of text or product details should be considered together; viewing angle is not a viewing-distance measurement.
Access & maintenance
Plan service access from the start.

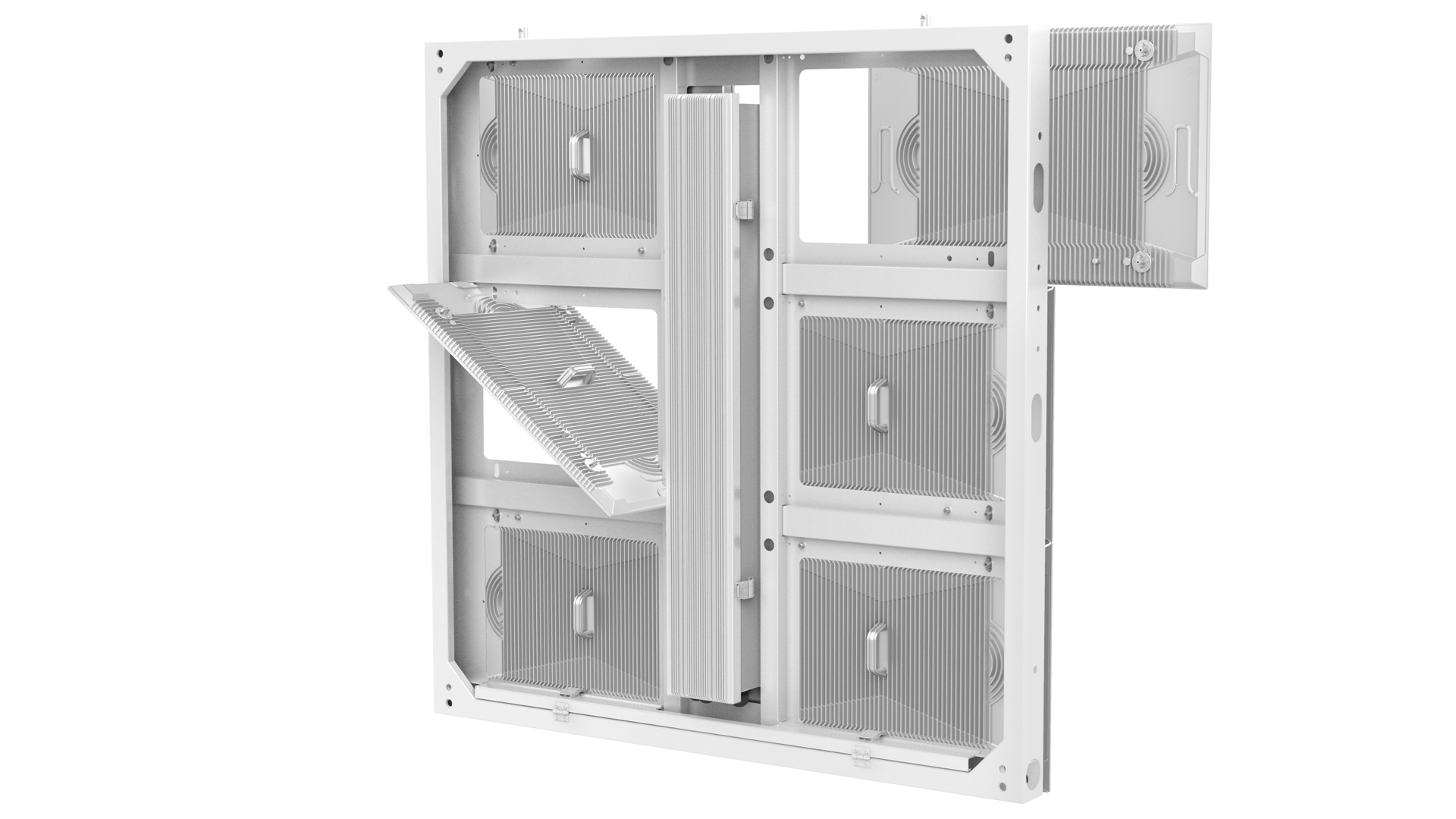

The Platinum cabinet design supports total front service and total rear service. Select the access arrangement around the mounting location and the space available at the site.
The aluminium module chassis uses an edge-lock construction. Cabinet access, the support structure and installation clearances should be coordinated as one system.
Applications & solutions
Built around outdoor advertising.
Explore the Platinum Series for large advertising displays and digital out-of-home installations, configured to suit the location.
Billboard Advertising
Large display surfaces for brand campaigns, promotional videos and advertising content at outdoor media locations.
Building Displays
Building-mounted advertising boards and façade displays, with cabinet arrangement and access planned for the structure.
Advertising Pylons
Elevated advertising screens and roadside signboards, with the pitch selected for the display size and audience position.
Plan your Platinum LED display.
Send your screen width and height, installation location, viewing position and a site photograph. Epix® will prepare the display configuration and installation scope.
The calculator is a starting point for LED budgeting. It is not a final Platinum system quotation or an automatically selected product configuration.
