P1.25 Flip Chip COB LED Screen at Tiger Properties Head Office
Epix® installed a P1.25 Flip Chip COB LED screen in the guest waiting area at Tiger Properties Head Office. The Pixelis Series display measures 2.40 metres wide × 1.6875 metres high, integrated into the prepared wall opening.
Installation date: 6 October 2026
Pixelis Series COB Display for the Guest Waiting Area

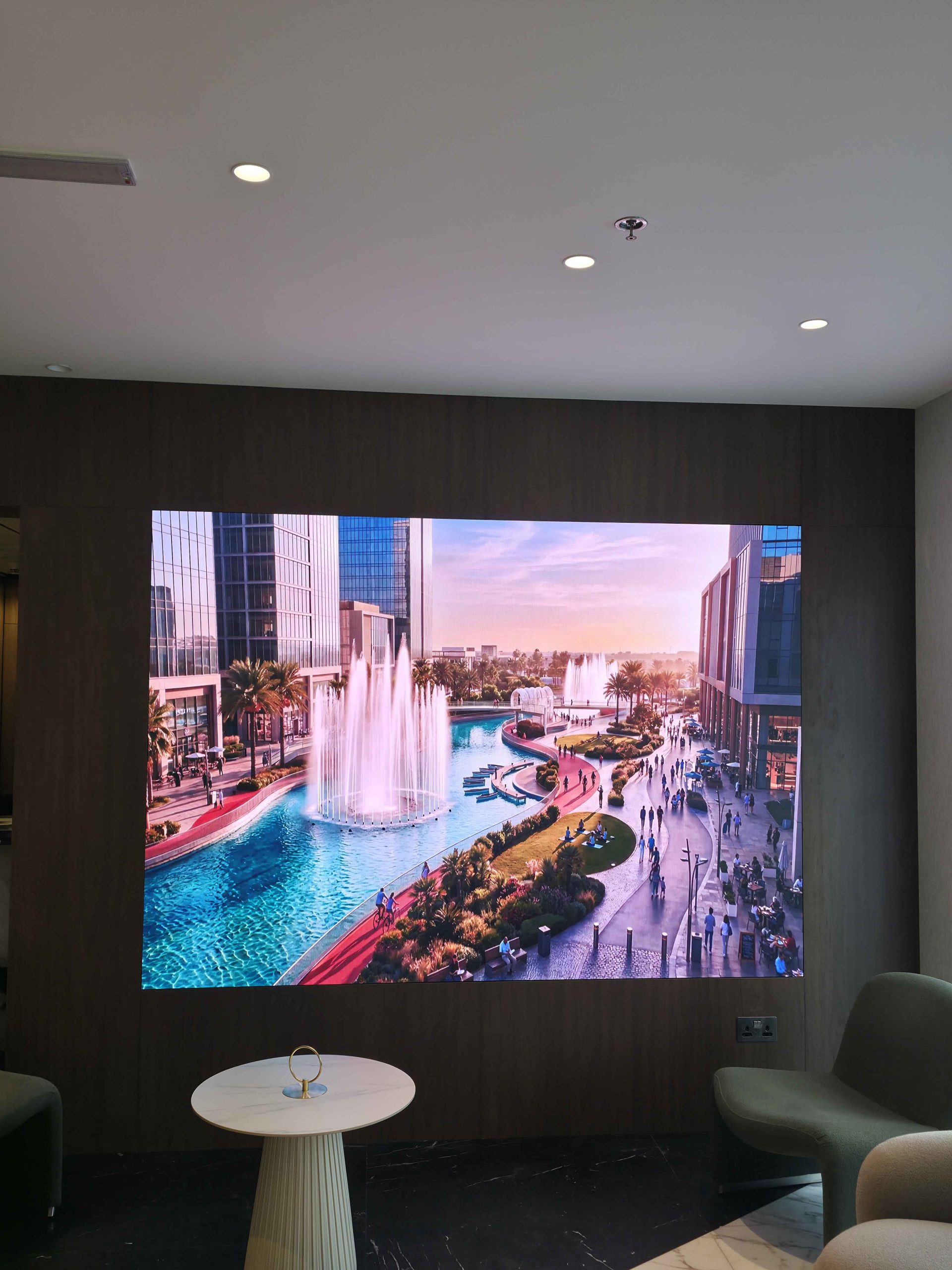

The guest waiting area at Tiger Properties Head Office now features an Epix® Pixelis Series P1.25 Flip Chip COB LED display. The installation creates a dedicated digital presentation surface within the existing interior.

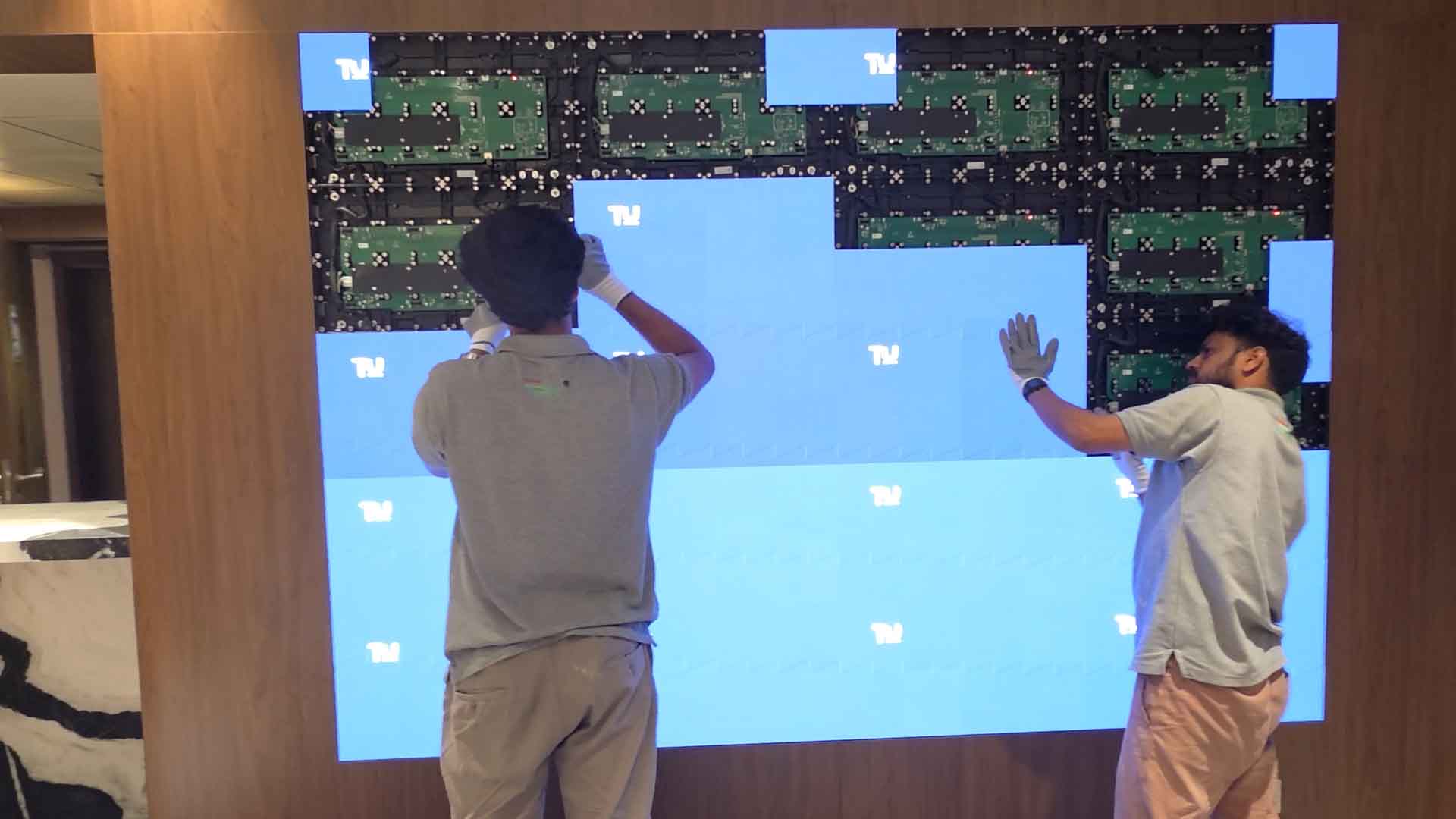

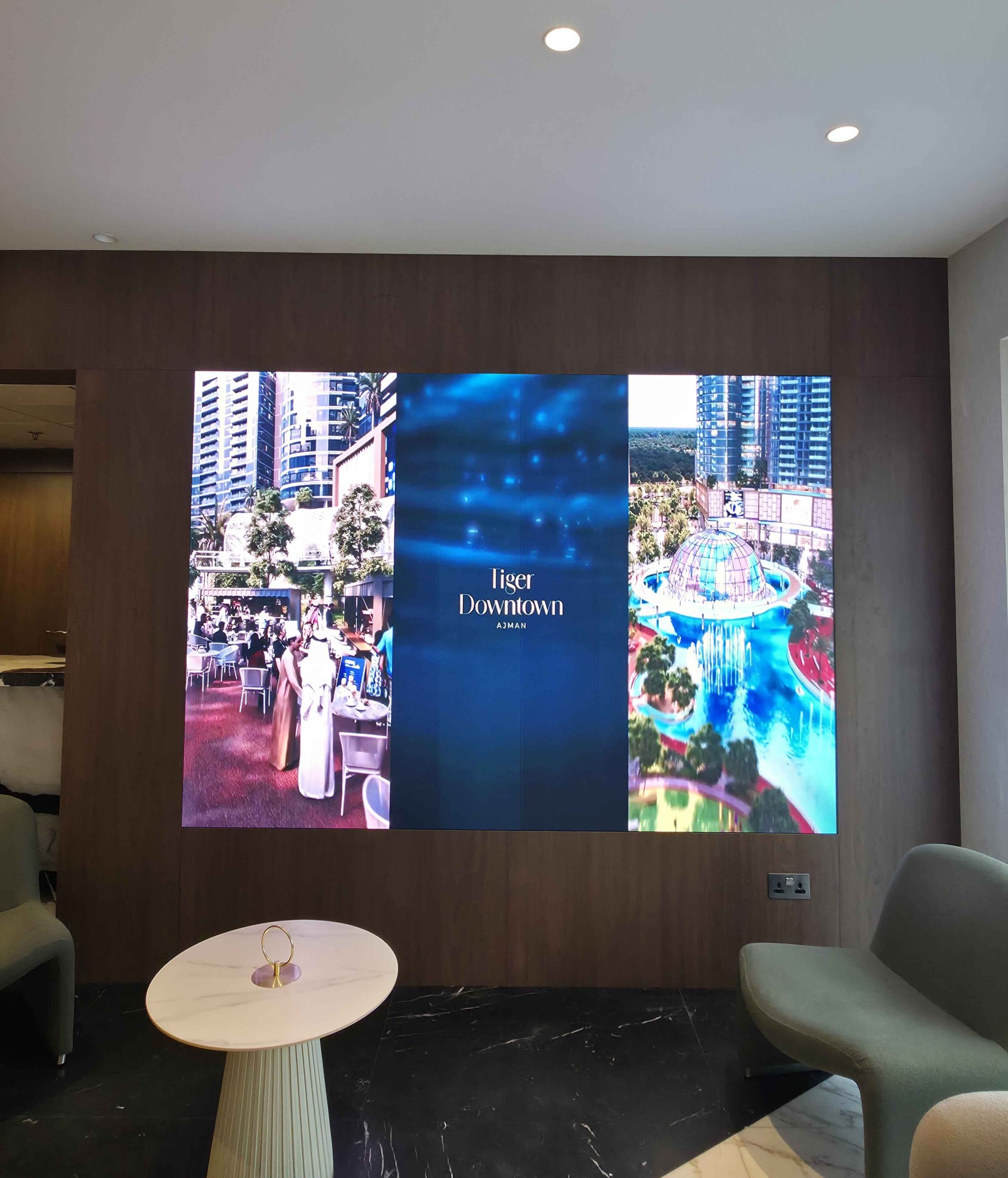

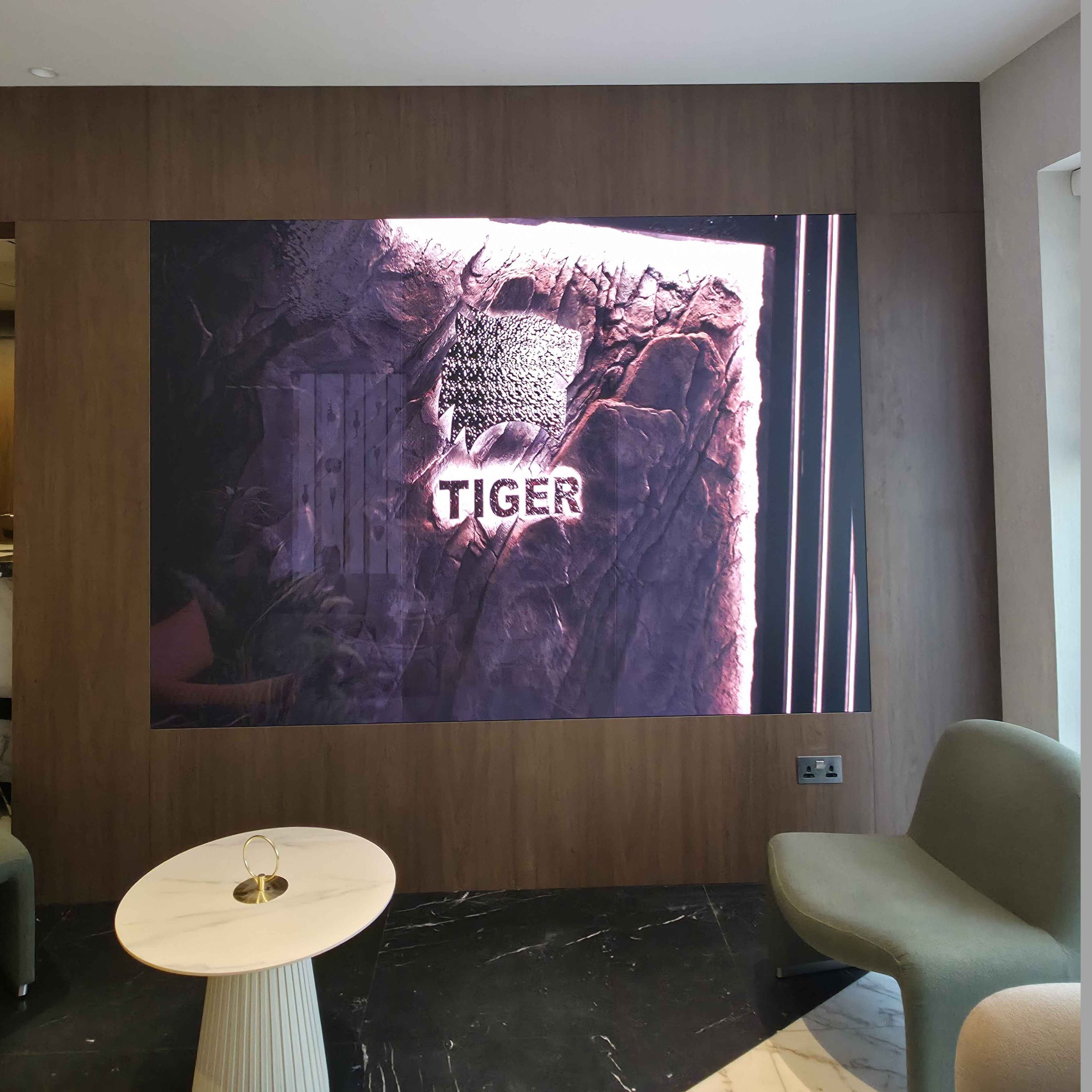

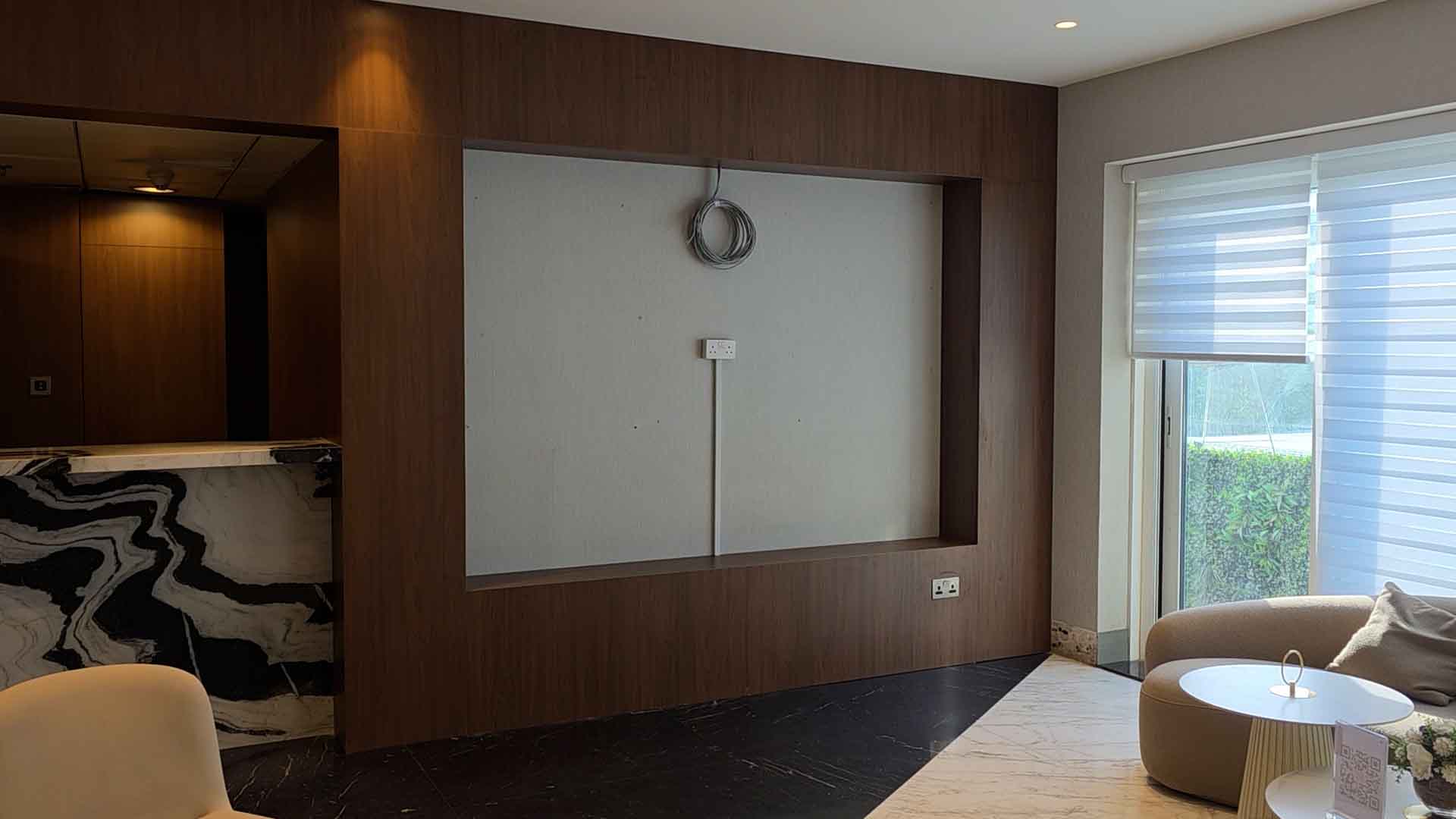

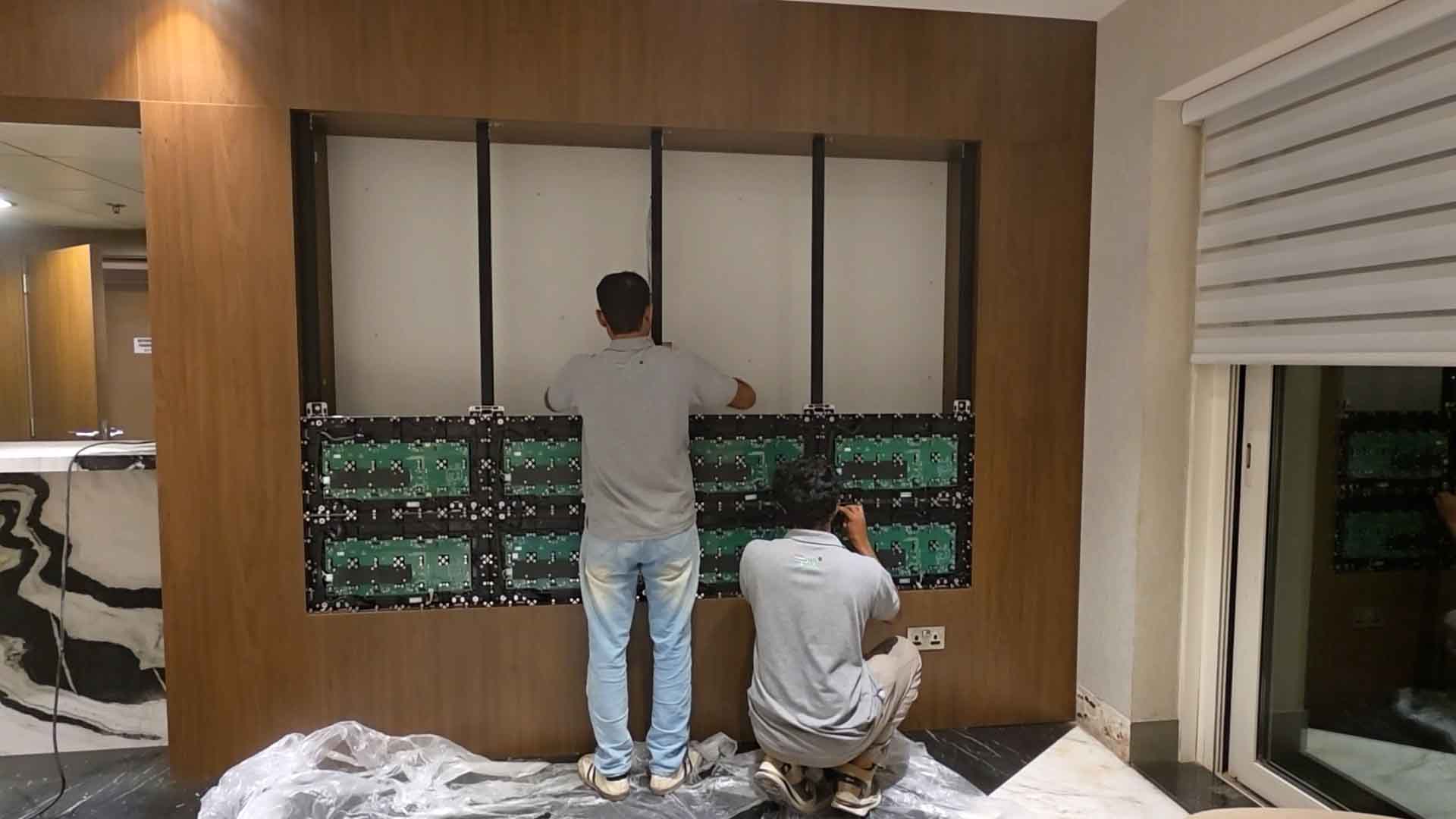

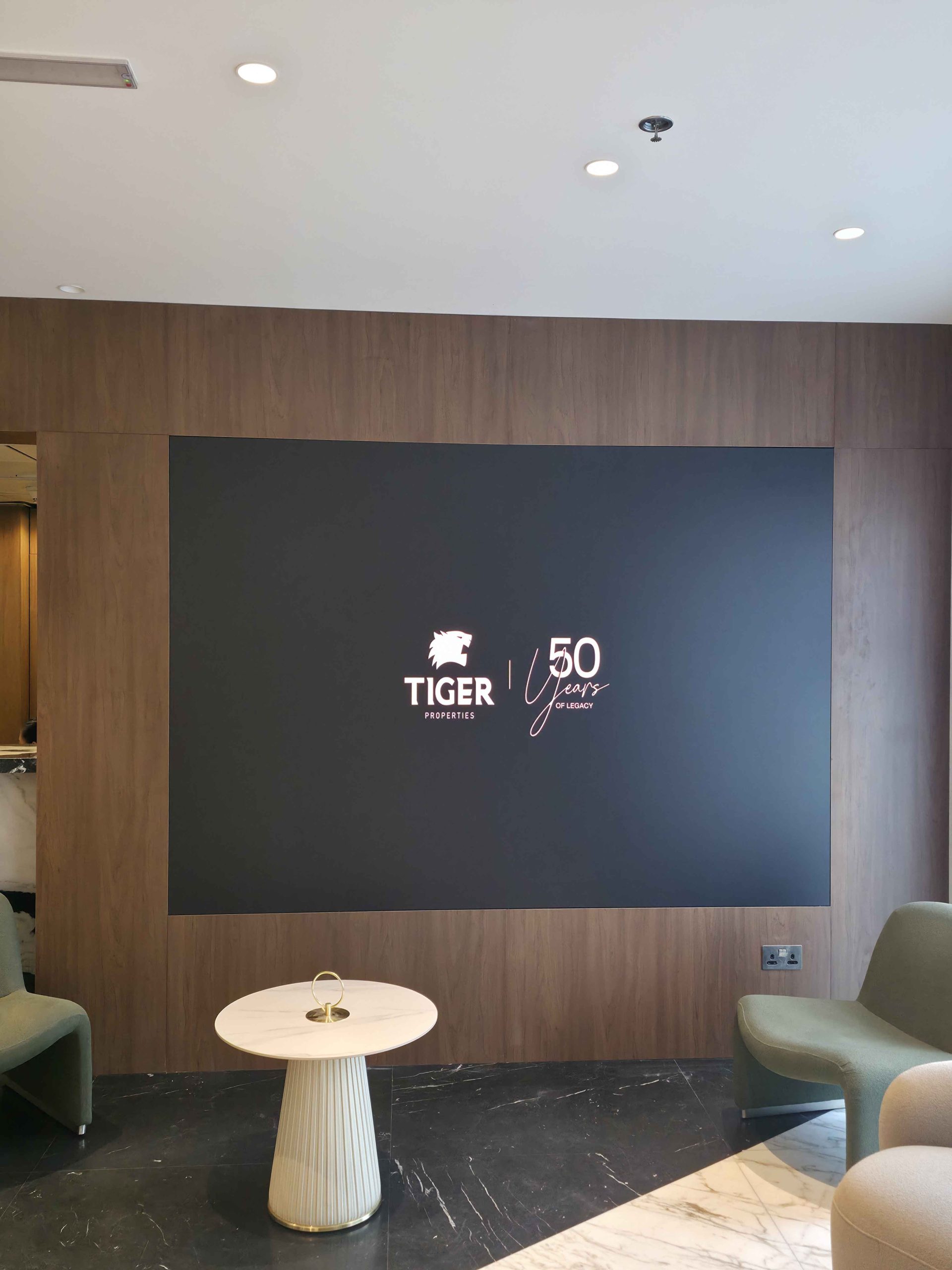

Project photographs document the prepared wall cutout, the aluminium cabinet assembly, panel fixing and the finished screen running visual content. The display sits within the surrounding wall finish, forming part of the waiting-area design.
Project Summary
Epix® installed a 2.40 × 1.6875 metre P1.25 Flip Chip COB LED screen at Tiger Properties Head Office on 6 October 2026. Located in the guest waiting area, the Pixelis Series display uses 20 cabinets in a 4 × 5 arrangement and provides a native resolution of 1920 × 1350 pixels.
Project Details
| Project location | Tiger Properties Head Office |
|---|---|
| Installation area | Guest waiting area |
| Installation date | 6 October 2026 |
| Brand and series | Epix® Pixelis Series |
| LED technology | Flip Chip COB |
| Pixel pitch | 1.25 mm |
| Screen size — W × H | 2.40 × 1.6875 metres |
| Active display area | 4.05 square metres |
| Installation format | Indoor display integrated into a prepared wall opening |
| Product | Epix® Pixelis Series COB LED Displays |
P1.25 Flip Chip COB LED Screen Specifications

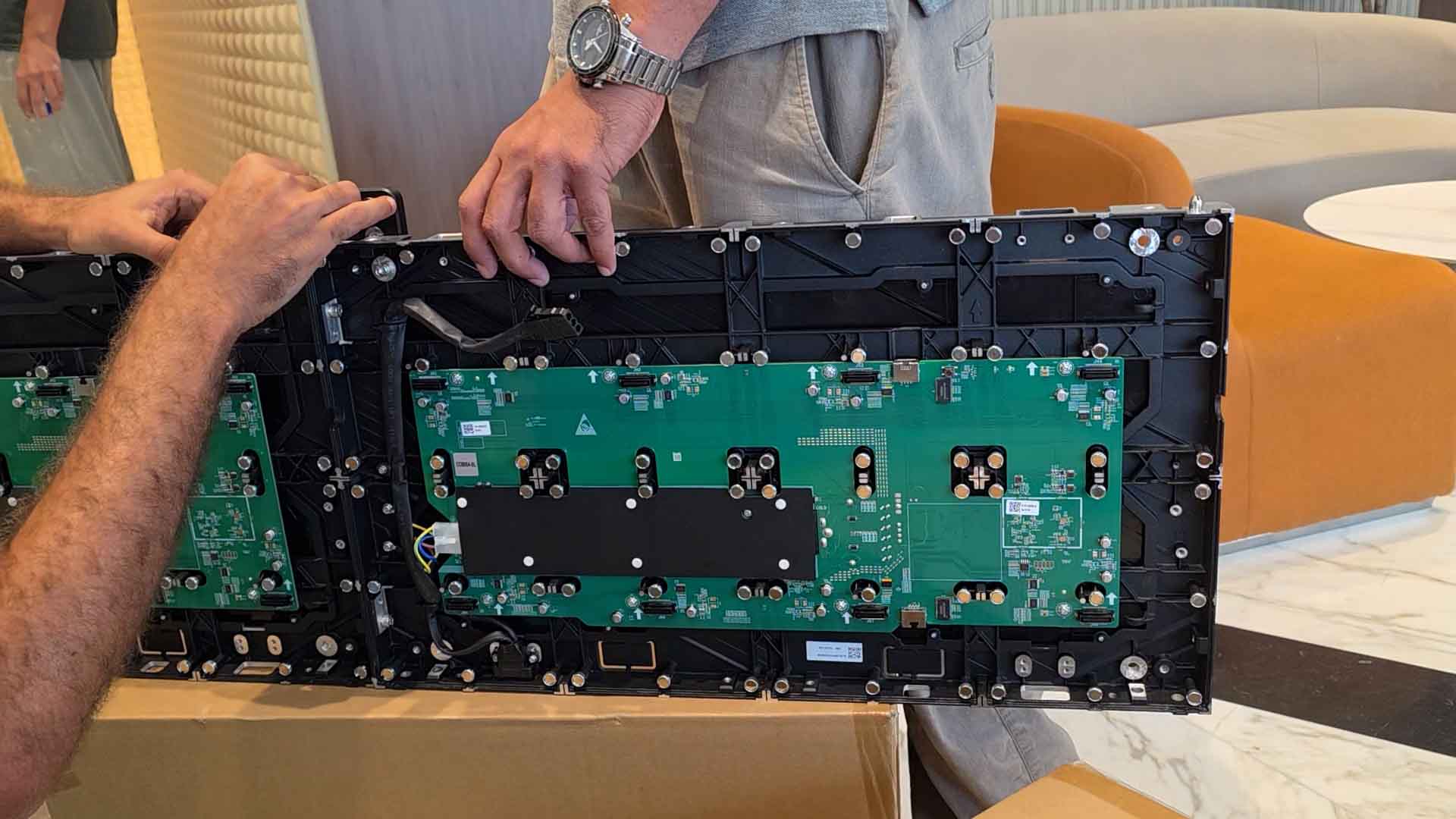

The display uses 600 × 337.5 mm Pixelis cabinets arranged four across and five high. Each P1.25 cabinet provides 480 × 270 pixels, creating a complete display canvas of 1920 × 1350 pixels.
| Pixel pitch | 1.25 mm |
|---|---|
| Technology | Flip Chip COB |
| Cabinet dimensions | 600 × 337.5 mm |
| Cabinet resolution | 480 × 270 pixels |
| Cabinet arrangement | 4 wide × 5 high |
| Total cabinets | 20 |
| Screen resolution | 1920 × 1350 pixels |
| Total pixels | 2,592,000 |
| Screen aspect ratio | 64:45 |
| Maintenance | Full front service |
Pixelis P1.25 Series Performance
The Pixelis product range specifies the following performance for its P1.25 model.
| Refresh rate | ≥7,680 Hz |
|---|---|
| Brightness | ≥1,000 nits |
| Contrast ratio | ≥20,000:1 |
| Viewing angle — H / V | 170° / 170° |
| Cabinet material | Die-cast aluminium |
Installation Highlights
Fine Pixel Pitch
P1.25 pixel spacing supports detailed indoor visuals in a guest waiting-area setting.
Protected COB Surface
Pixelis Flip Chip COB construction provides a protected display surface for indoor installations.
Front Service Access
The cabinet platform supports maintenance from the front of the screen.
From Wall Preparation to the Completed LED Screen
Follow the installation sequence at Tiger Properties Head Office, from the prepared wall opening to cabinet assembly, panel fixing and the completed display.
See the Pixelis Display Come to Life
Watch the P1.25 Flip Chip COB LED screen installation at Tiger Properties Head Office—from wall preparation and cabinet assembly to the completed display.
Pixelis Display Integration for Corporate Interiors
This project brings together the Epix® Pixelis cabinet platform, a screen configuration matched to the available wall opening and installation within the guest waiting area. The result is a dedicated digital display integrated into the interior.
Frequently Asked Questions
Which LED screen was installed at Tiger Properties?
Epix® installed a Pixelis Series P1.25 Flip Chip COB LED screen in the Head Office guest waiting area.
What are the screen dimensions?
The active display measures 2.40 metres wide × 1.6875 metres high, giving a total area of 4.05 square metres.
What is the native screen resolution?
The screen resolution is 1920 × 1350 pixels, using 20 cabinets arranged four wide and five high.
Does this screen have a standard Full HD aspect ratio?
The display has 1920 pixels across and 1350 pixels vertically. Its aspect ratio is 64:45, so it is taller than a standard 1920 × 1080 Full HD screen.
How is the Pixelis screen serviced?
The Pixelis cabinet platform supports full front service, allowing maintenance access from the screen face.
When was the project installed?
The installation date was 6 October 2026.
