P3.076 Outdoor LED Screen at South Breaze Shop, Dubai
A custom outdoor display for South Breaze Shop in Hor Al Anz, Deira, Dubai. The Epix® installation combines a 1.60 × 1.92 metre P3.076 outdoor LED screen with a waterproof steel enclosure and front maintenance access.
Installed: 20 September 2025
Outdoor Digital Advertising for a Deira Shopfront
Epix® installed a P3.076 outdoor LED display at South Breaze Shop in Hor Al Anz, Deira, Dubai, UAE. The portrait-format screen measures 1.60 metres wide and 1.92 metres high, providing a digital advertising surface for product visuals, promotional messages and branded content.
The installation features a custom-built waterproof steel box with front maintenance access. The display assembly was tested and branded as Epix®, with the enclosure built for this project’s outdoor installation.
Project Summary
South Breaze Shop’s Epix® P3.076 outdoor LED screen was installed on 20 September 2025 in Hor Al Anz, Deira, Dubai. It measures 1.60 × 1.92 metres and uses a custom waterproof steel enclosure designed for front maintenance.
Installation Details
| Project | South Breaze Shop |
|---|---|
| Location | Hor Al Anz, Deira, Dubai, UAE |
| Installation date | 20 September 2025 |
| Display type | Outdoor fixed LED screen |
| Pixel pitch | P3.076 |
| Screen size — W × H | 1.60 × 1.92 metres |
| Display area | 3.072 square metres |
| Maintenance access | Front maintenance |
| Enclosure | Custom-built waterproof steel box |
| Brand | Epix® |
| Product range | Epix® Outdoor Fixed LED Screens |
P3.076 LED Modules in a Custom Front Maintenance Box
The screen uses the Epix® Outdoor Fixed LED product range with a custom steel enclosure. Front maintenance allows servicing from the display face, reducing dependence on access behind the screen.
Using the product range’s 320 × 160 mm modules and 104 × 52-pixel module resolution, the 1.60 × 1.92 metre display corresponds to a calculated native resolution of 520 × 624 pixels.
| Module dimensions | 320 × 160 mm |
|---|---|
| Module resolution | 104 × 52 pixels |
| Calculated arrangement | 5 modules wide × 12 modules high |
| Calculated module quantity | 60 modules |
| Calculated screen resolution | 520 × 624 pixels |
Configuration calculated from the screen dimensions and the linked product’s module specifications. Confirm the installed controller mapping before exporting final playback content.
Installation Highlights
Custom Steel Enclosure
A waterproof steel box built for the outdoor screen installation at South Breaze Shop.
Front Maintenance
Access from the display face supports servicing without relying on rear access.
Epix® Tested Assembly
The project’s display assembly was tested and branded as Epix®.
South Breaze Shop Outdoor LED Display Gallery

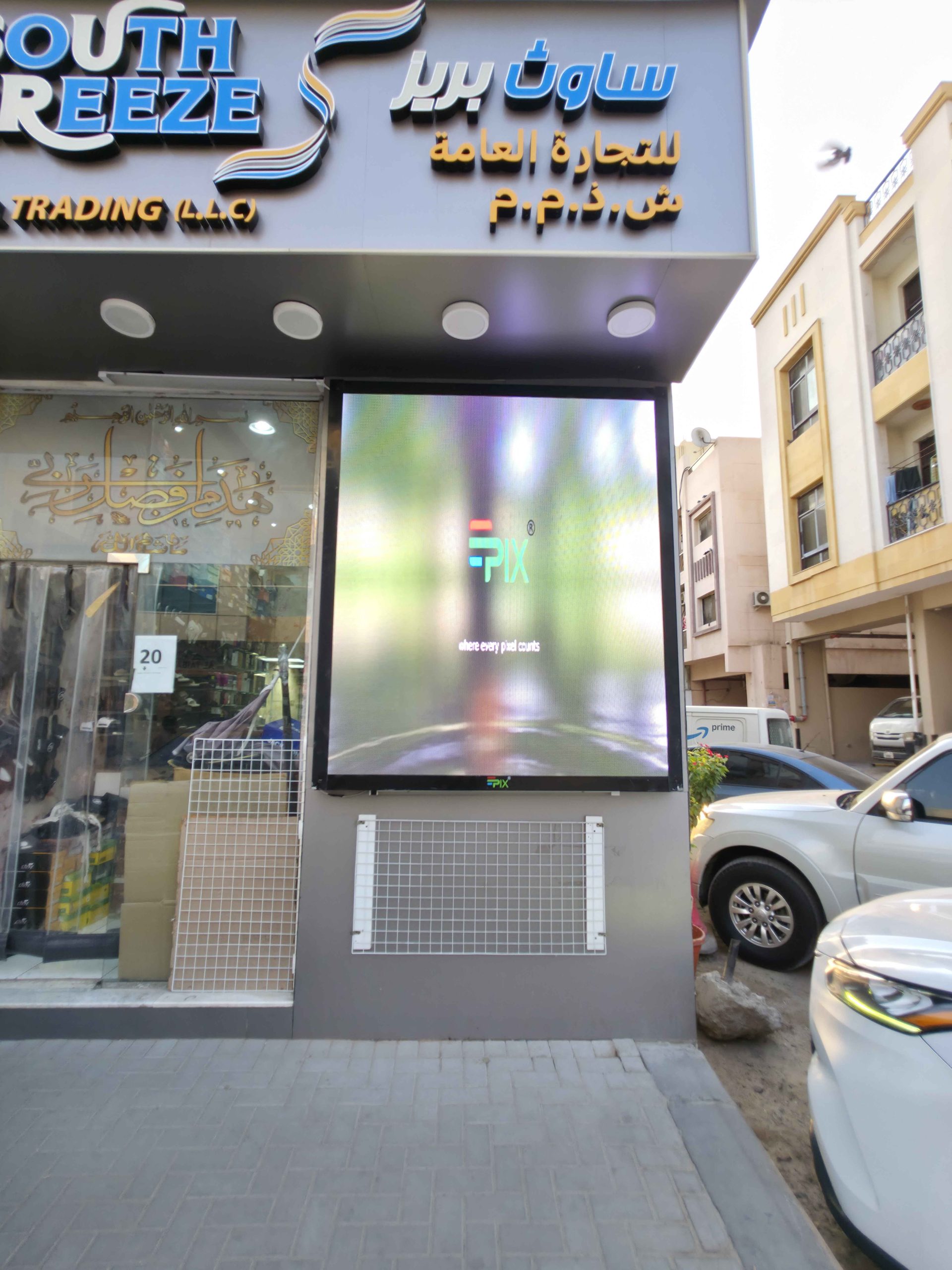

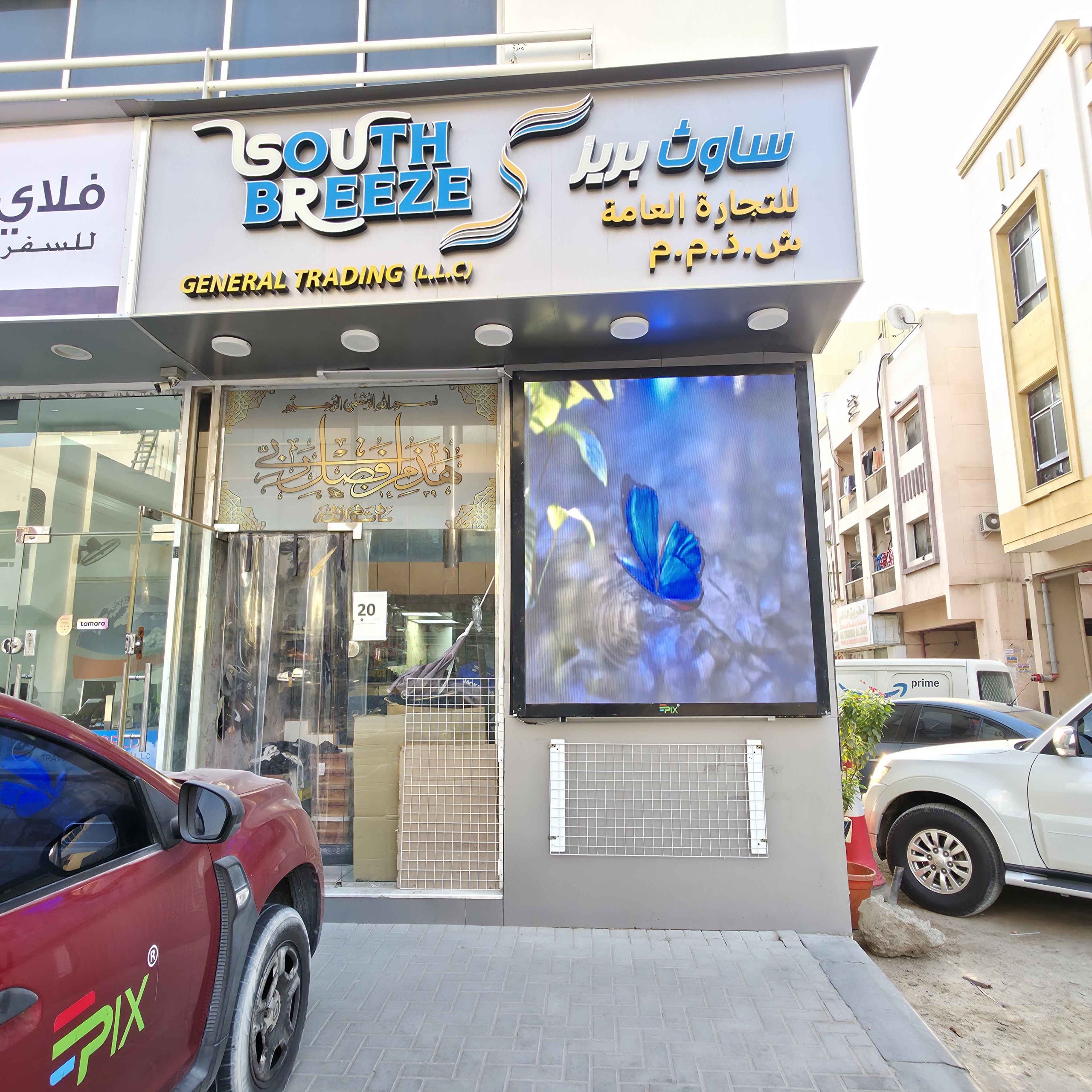

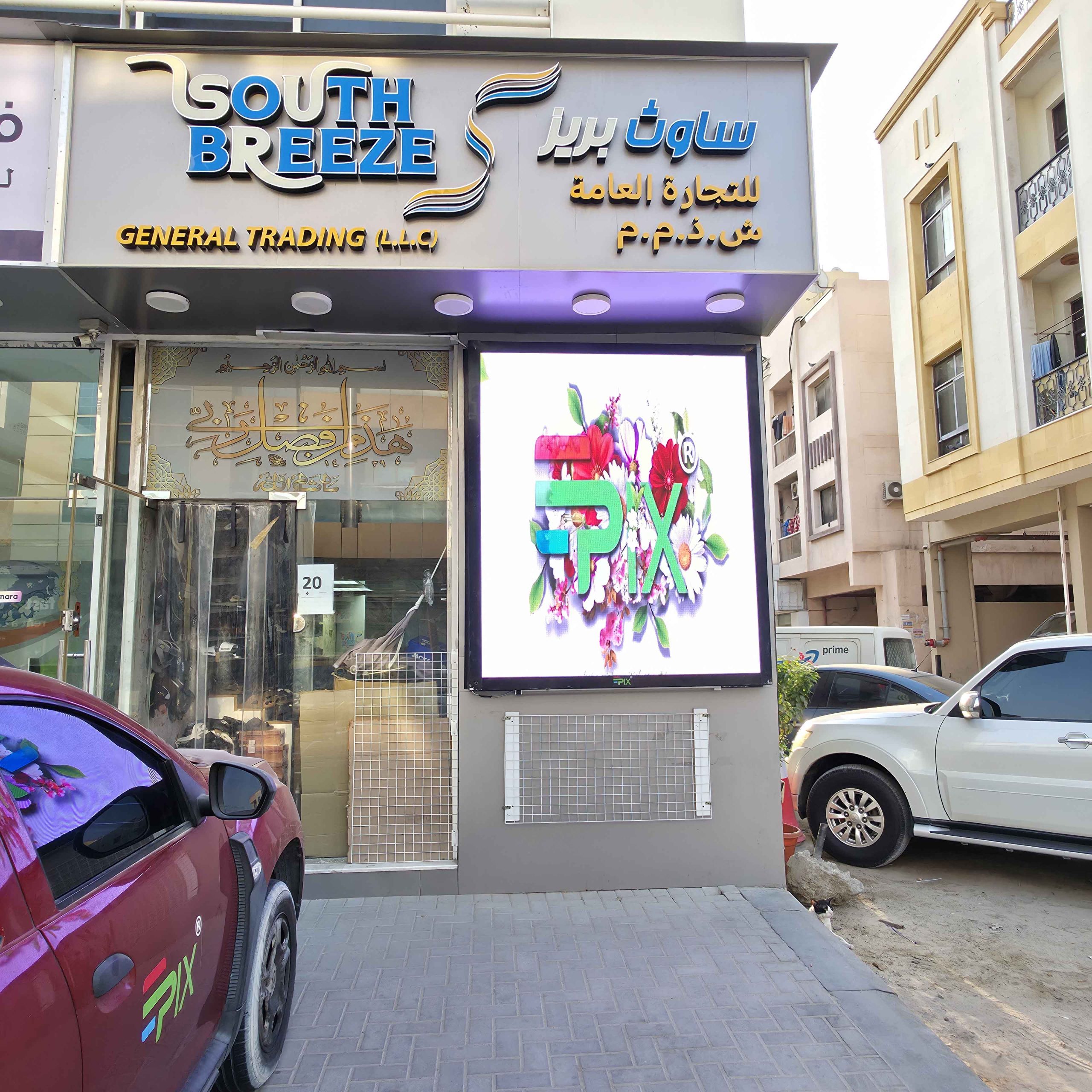

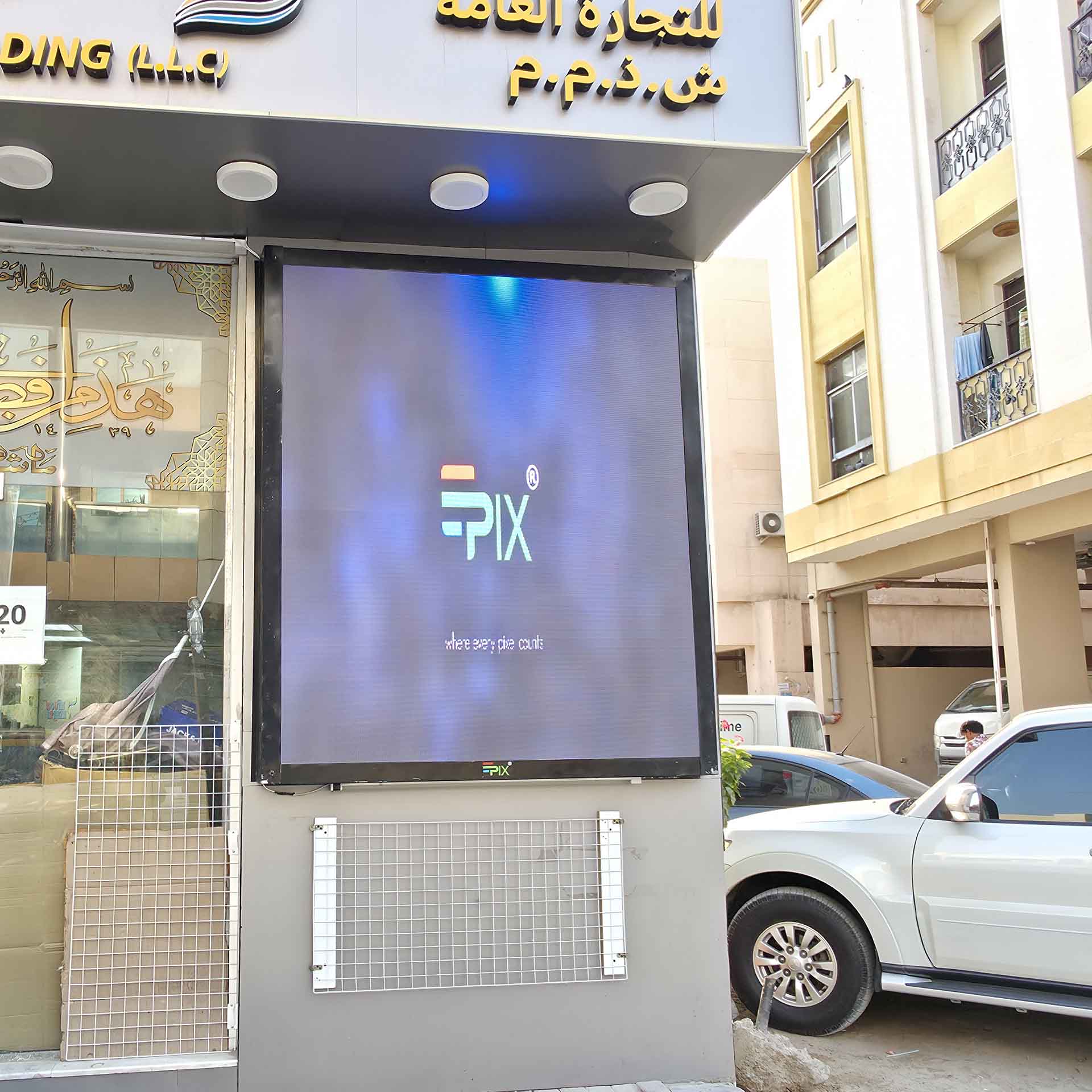

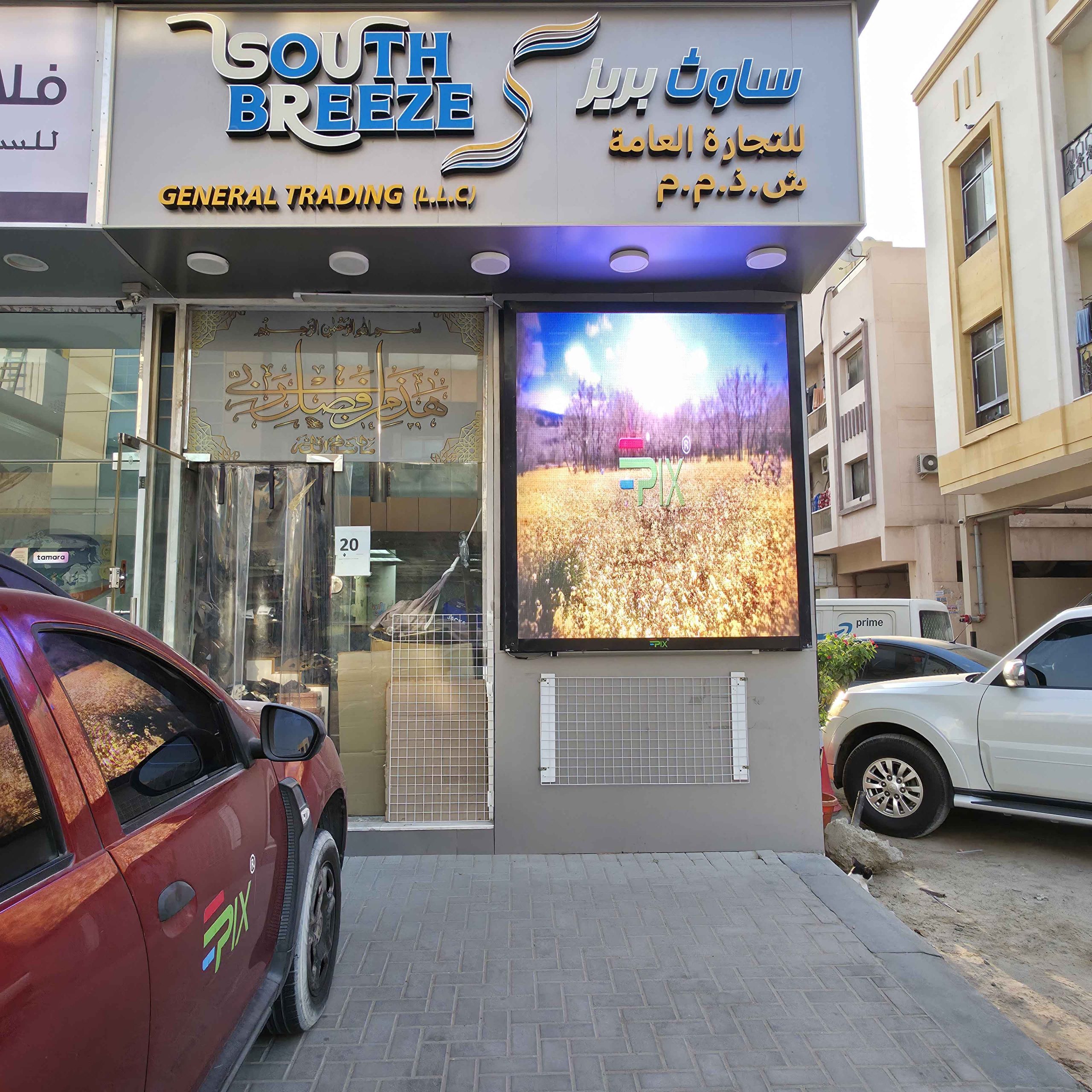

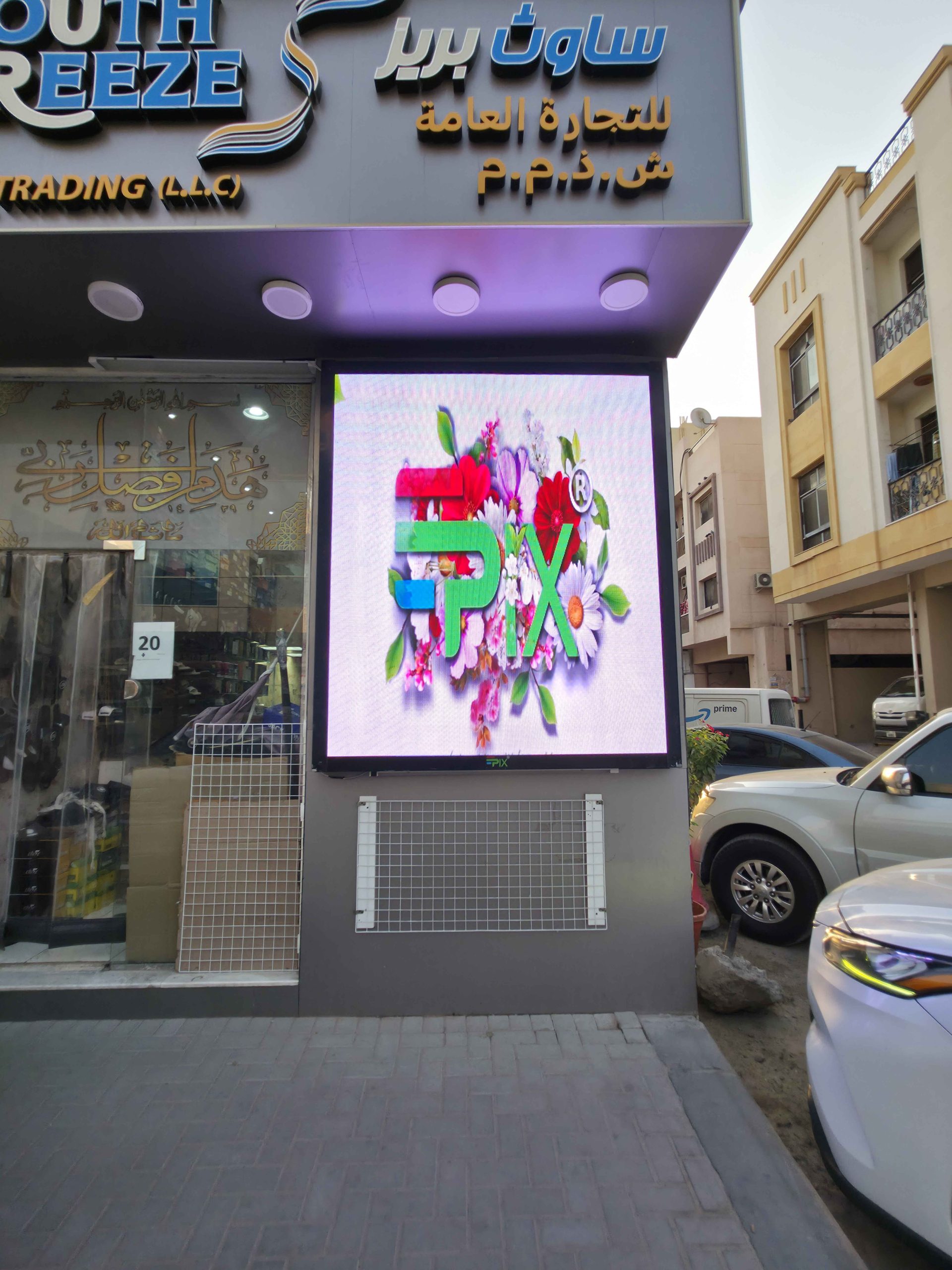

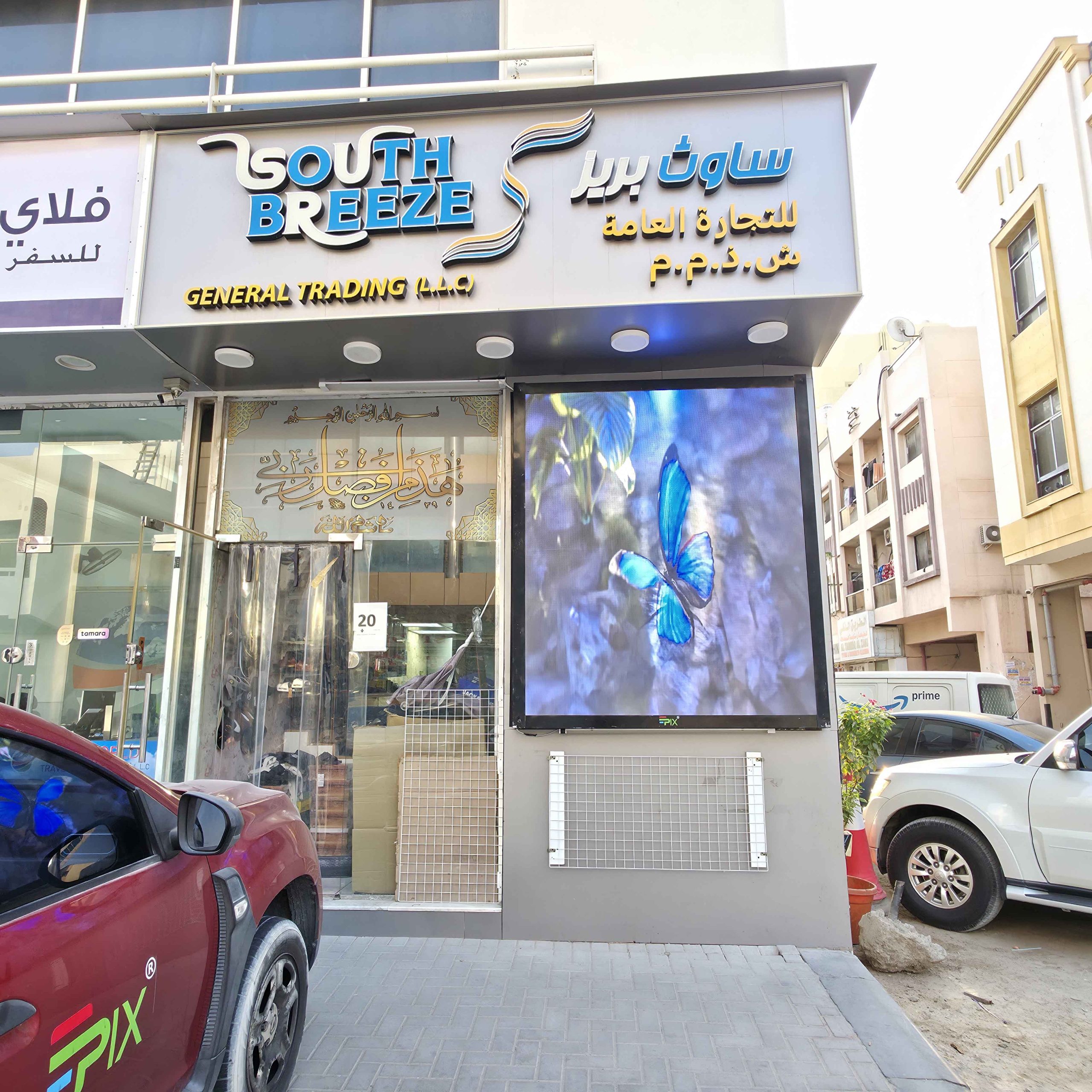

Project photographs show the installed P3.076 outdoor LED screen at the shopfront with different advertising visuals.
Watch the P3.076 Outdoor LED Screen in Dubai
Watch the Epix® P3.076 outdoor LED display at South Breeze Shop in Hor Al Anz, Deira, Dubai. This 1.60 × 1.92 metre installation features a custom-built waterproof steel box with front maintenance access.
A Display Configuration Built Around the Project
This installation combines Epix® outdoor LED modules with a custom waterproof steel box and front maintenance access. The screen dimensions, enclosure and service arrangement form a project-specific solution for South Breaze Shop.
Explore the Epix® Outdoor Fixed LED Screen range for product details and other available pixel pitches.
Frequently Asked Questions
What size is the LED screen at South Breaze Shop?
The screen measures 1.60 metres wide × 1.92 metres high, with a display area of 3.072 square metres.
Which pixel pitch was installed?
The installation uses P3.076 outdoor LED display modules.
How is the outdoor LED screen maintained?
The custom-built steel enclosure provides front maintenance access, allowing servicing from the display face.
What enclosure was used?
A custom-built waterproof steel box was used. The display assembly was tested and branded as Epix®.
Where and when was the screen installed?
The screen was installed at South Breaze Shop in Hor Al Anz, Deira, Dubai, UAE, on 20 September 2025.
