Ticker LED Screen in JLT Dubai for PANAFRICAN
Epix® installed a 4.00 × 0.32 metre ticker LED display for PANAFRICAN in Jumeirah Lakes Towers (JLT), Dubai, UAE. The solution combines P4 outdoor LED modules, a NovaStar TB10 control system and MatFlex Ticker Display Solution software.
Scrolling Ticker LED Display for Financial Information
PANAFRICAN required a long, narrow display for scrolling price information at its JLT location. Epix® provided a ticker LED screen with a four-metre horizontal format, positioned above the existing wall-mounted displays.
The project photographs show currency and commodity information, including instrument names, prices and percentage movements. This layout presents multiple items along a continuous LED strip while retaining the room’s existing display arrangement.
Project Summary
Epix® supplied and installed a 4.00 m wide × 0.32 m high scrolling ticker LED display for PANAFRICAN in Jumeirah Lakes Towers, Dubai, UAE. The system uses P4 outdoor LED modules selected for the area’s lighting conditions, NovaStar TB10 control and MatFlex Ticker Display Solution software.
Project Details
| Client | PANAFRICAN |
|---|---|
| Location | Jumeirah Lakes Towers (JLT), Dubai, UAE |
| Solution | Scrolling ticker LED screen |
| Display brand | Epix® |
| Screen size — W × H | 4.00 × 0.32 metres |
| Display area | 1.28 m² |
| Pixel pitch / module type | P4 / Outdoor LED |
| Control system | NovaStar TB10 |
| Software | MatFlex Ticker Display Solution |
| Support structure | Steel frame |
Why P4 Outdoor Modules Were Used for This Ticker LED Screen
Lighting around a screen affects how clearly its text and graphics stand out. For this installation, higher-brightness outdoor LED modules were selected to help the scrolling information remain visible under the area’s lighting conditions.
The choice was driven by the brightness requirement at the site. P4 describes the 4 mm pixel pitch; the selected outdoor module specification provides the higher-brightness capability.
Brightness for the Space
Outdoor modules were selected to address the surrounding lighting and support ticker visibility.
Long Horizontal Format
A 4.00 × 0.32 metre display provides a dedicated strip for scrolling text and financial price information.
Integrated Wall Position
The ticker is mounted above the existing screens, keeping the financial information within the same display area.
Explore the Epix® Outdoor Fixed LED Screen range for available module options.
MatFlex Ticker Display Solution with NovaStar TB10
The project combines the Epix® LED display with MatFlex software for the ticker presentation and NovaStar TB10 for display control. The photographs show a scrolling price LED layout with instrument labels, numerical prices and movement indicators.
Epix® LED Hardware
P4 outdoor LED modules form the long horizontal matrix display on its supporting steel structure.
MatFlex Software
MatFlex Ticker Display Solution provides the scrolling financial information presentation.
NovaStar Control
NovaStar TB10 is the LED control system selected for this installation.
Installation Scope

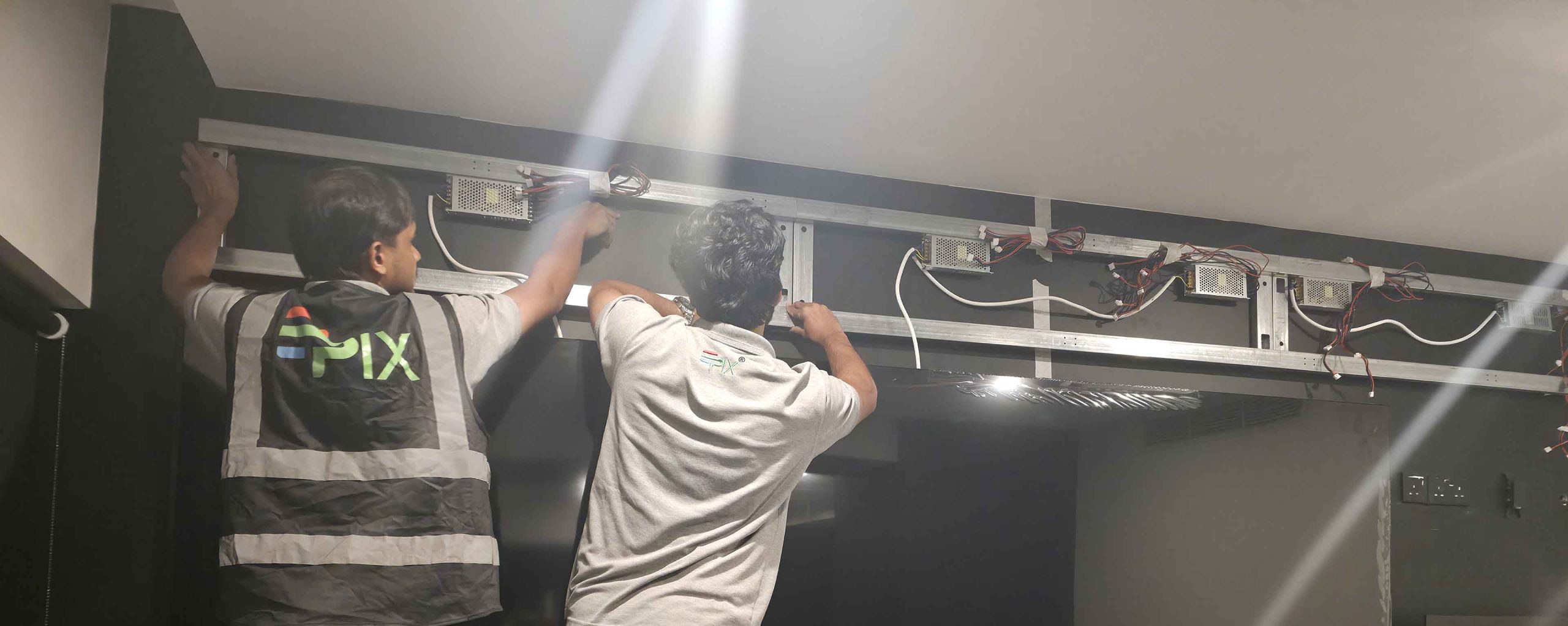

The project includes the steel support frame, ticker LED display installation, NovaStar TB10 control system and MatFlex ticker software solution. The gallery documents the frame work, installation and screen displaying financial content.

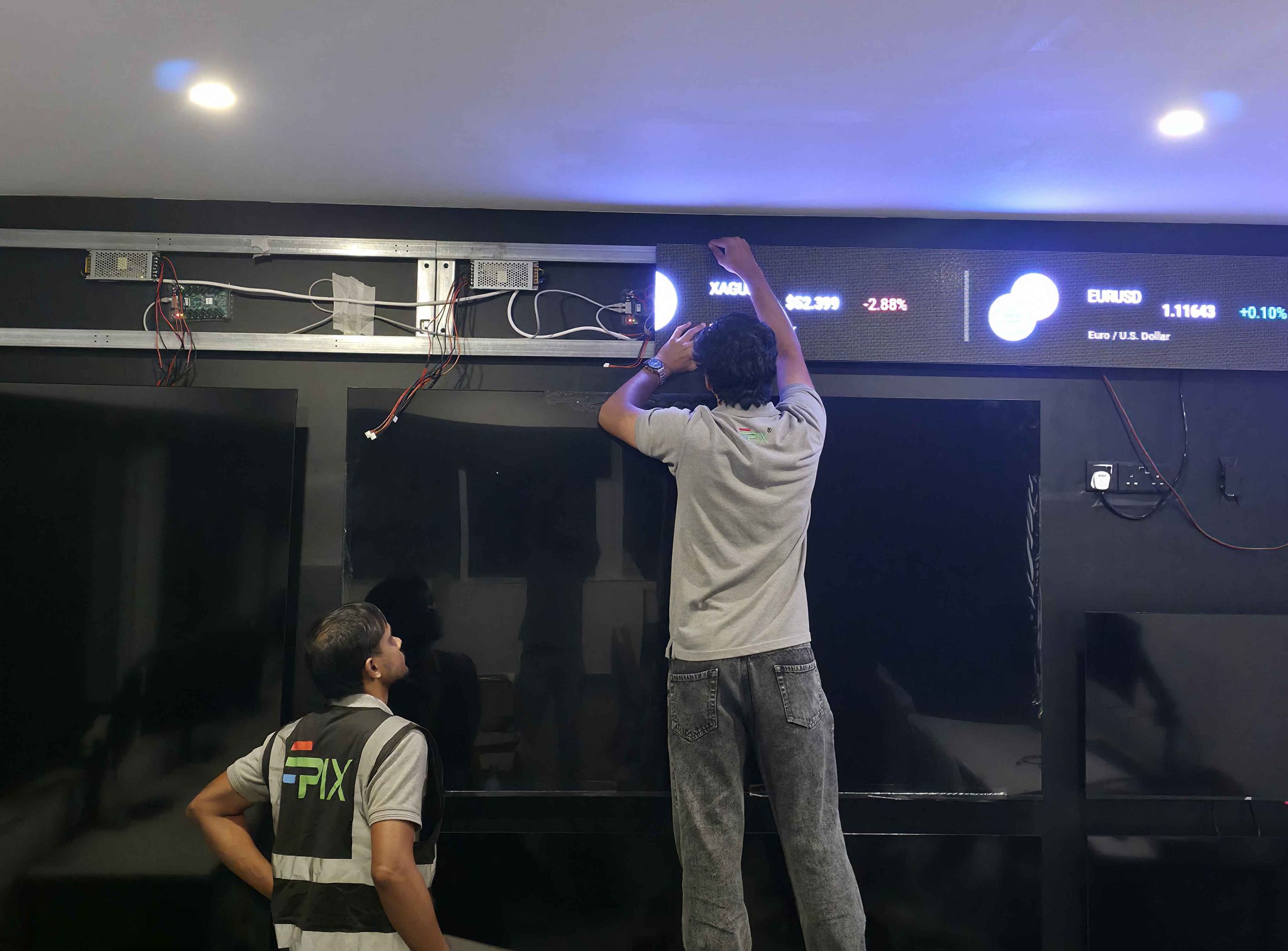

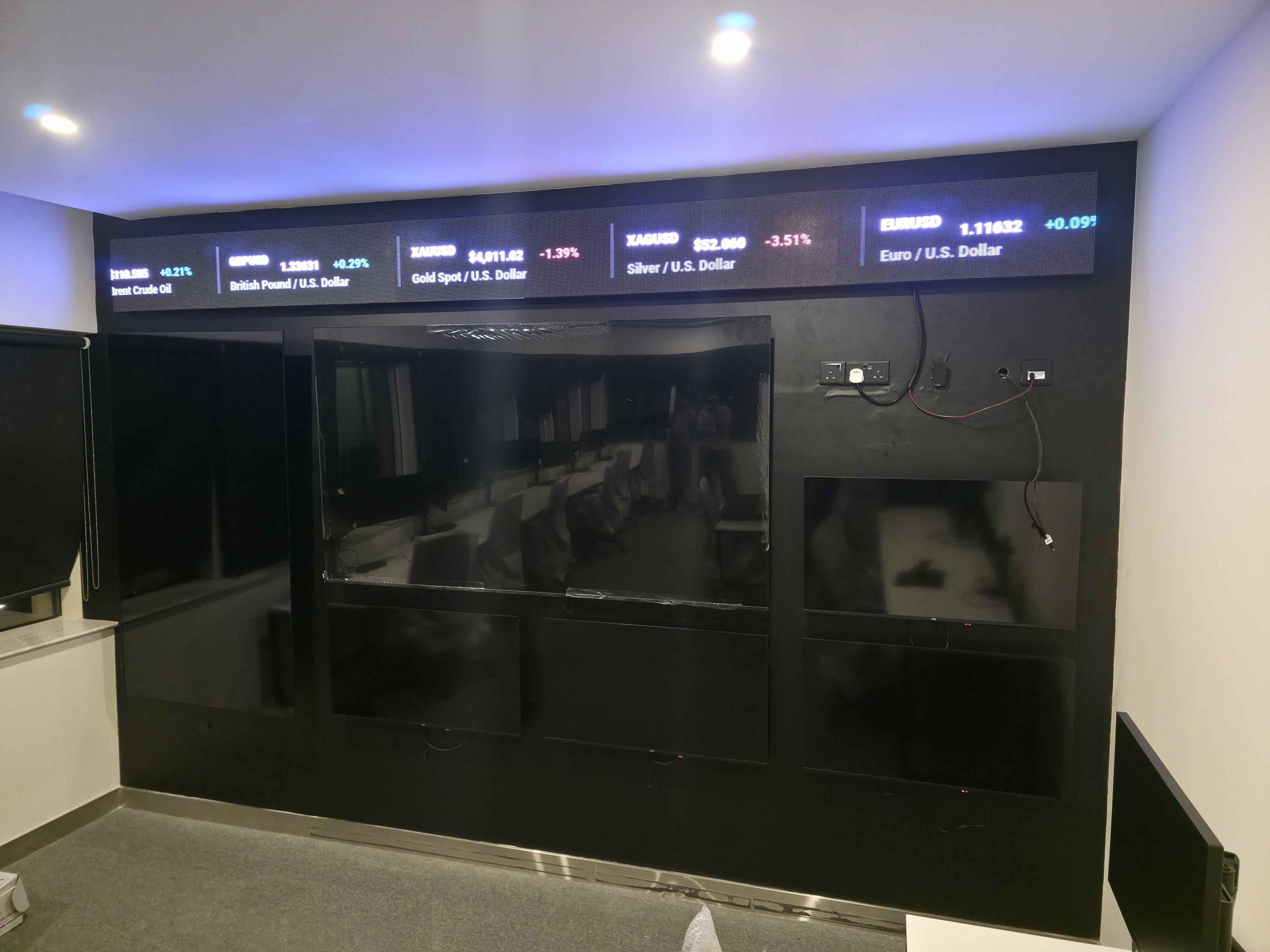

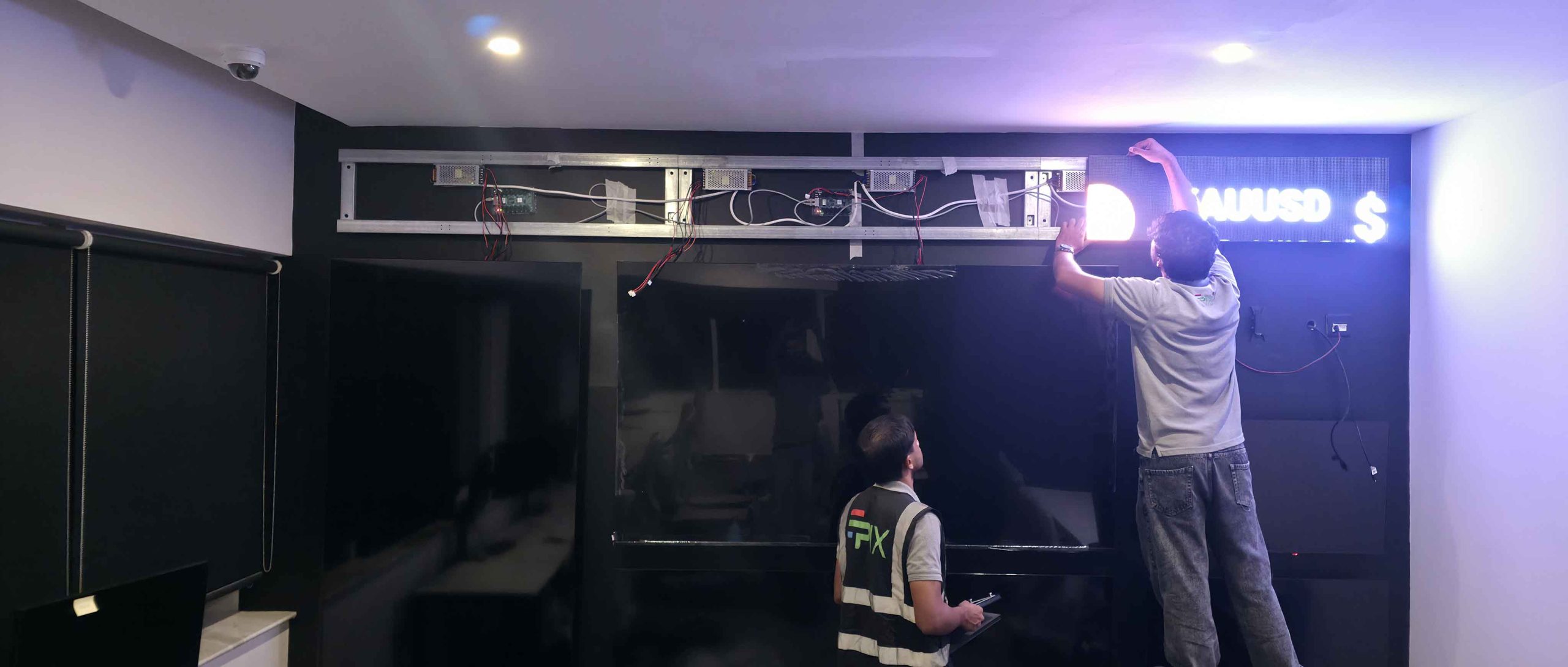

Ticker LED Screen Installation Photos — PANAFRICAN, JLT Dubai
Follow the project from steel frame preparation and installation to the ticker LED display presenting price information.
Ticker LED Display FAQs
Where was this ticker LED screen installed?
Epix® installed the display for PANAFRICAN in Jumeirah Lakes Towers (JLT), Dubai, UAE.
What size is the PANAFRICAN ticker LED display?
The screen measures 4.00 metres wide × 0.32 metres high, providing a display area of 1.28 square metres.
Why were P4 outdoor LED modules selected?
The modules were selected for their higher-brightness capability to address the lighting conditions around the screen. P4 refers to the 4 mm pixel pitch.
Which software and controller were used?
The project uses MatFlex Ticker Display Solution software and a NovaStar TB10 LED control system.
What is a scrolling price LED display?
It is a ticker-format LED screen that moves price information and labels across the display. This project shows financial instruments with prices and percentage movements.
Can Epix customize matrix screen layouts for other spaces?
Yes. Epix® can plan a ticker or matrix screen around the required dimensions, viewing position, lighting and content. Available sizes depend on the selected LED modules and installation method.
Plan Your Ticker LED Screen in Dubai or Across the UAE
Share your screen dimensions, site photographs and the information you want to display. Epix® can discuss the LED hardware, supporting structure, control and software requirements for your ticker project.
Watch the PANAFRICAN Ticker LED Display and Explore MatFlex
See the scrolling ticker LED screen installed in JLT, Dubai, alongside the MatFlex software used to prepare ticker content.
PANAFRICAN Project Video
Watch the 4.00 × 0.32 metre P4 ticker LED display with NovaStar TB10 control and MatFlex ticker software at PANAFRICAN, JLT Dubai.
MatFlex Ticker Software
Configure the ticker layout, financial instruments, colours and scrolling speed, with a preview of the display content in the MatFlex ticker builder.
