Project Overview
Location
Al Quoz, Dubai UAE
Screen Technology
P1.5 COB LED Display
Luxury Super Car Section
22.08 × 1.6 Meter
Luxury Classic Garage
19.2 × 1.6 Meter
Screen Resolution
14352×1040 & 12480×1040
Playback System
Powered by Epix® using Matflex™ Media Player technology
The Challenge Behind Ultra-Long LED Displays

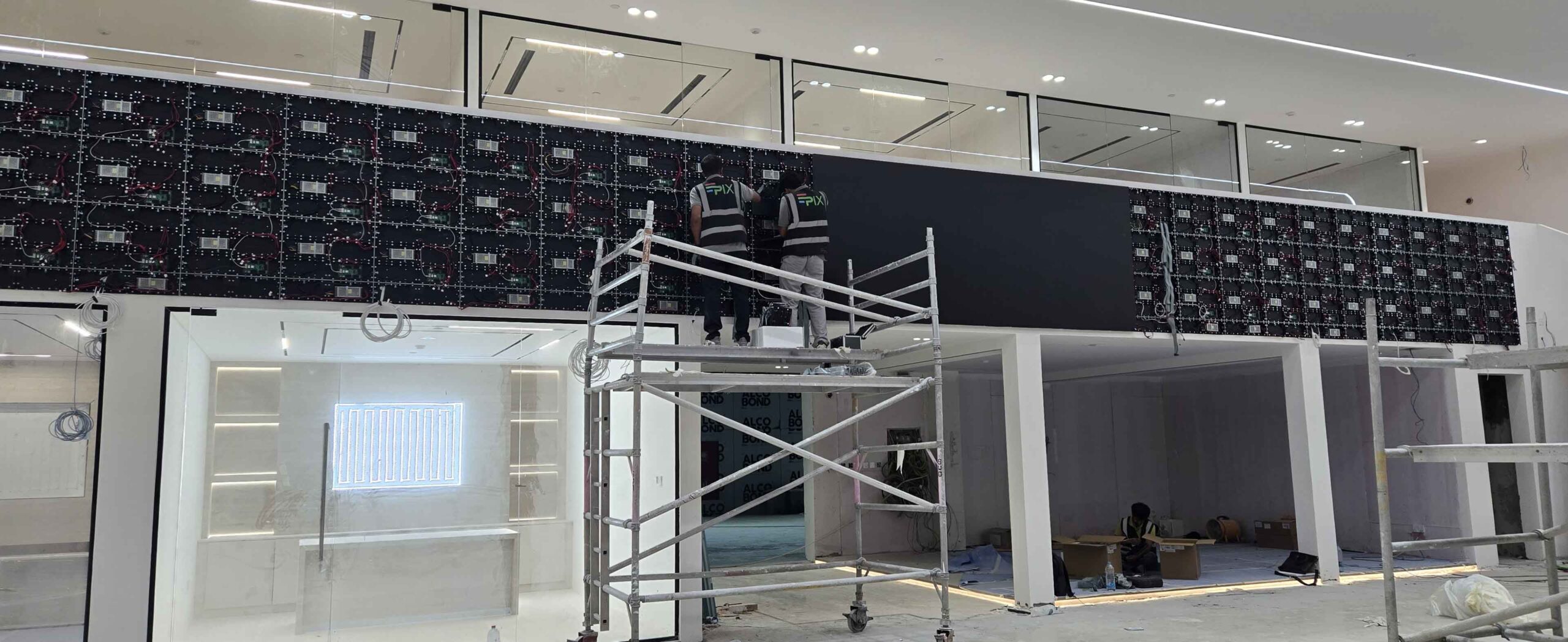

One of the biggest challenges of this project was achieving perfect alignment and leveling across extremely long LED display surfaces.
Due to the ultra-wide dimensions, even small installation inaccuracies could become visually noticeable across the full screen length.
The Epix® technical team repeatedly adjusted cabinet positioning and structure alignment to achieve balanced spacing across the top, bottom, left, and right sides of the displays.
Another major challenge was ultra-wide content playback at resolutions of 14352×1040 and 12480×1040 pixels while maintaining smooth synchronized playback.
Installation & Configuration Process

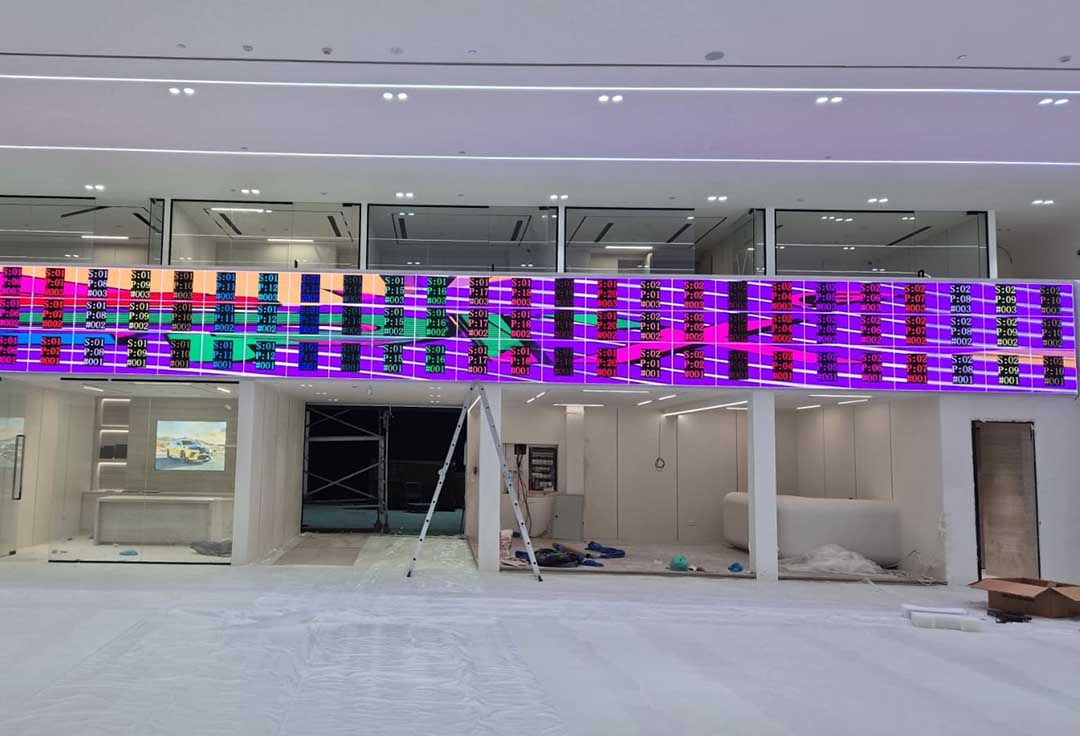

The project included structural alignment, cabinet installation, mapping, calibration, playback testing, and ultra-wide content configuration.
Ultra-Wide LED System Architecture
The LED system was designed using professional LED processing and multi-output playback architecture to support extremely high-resolution content.
- High-performance playback PC
- Novastar H5 video processor
- Multiple HDMI output configuration
- Ultra-wide content mapping
- Multi-section power distribution
The power system for each screen was divided into three sections for improved load distribution and system reliability.

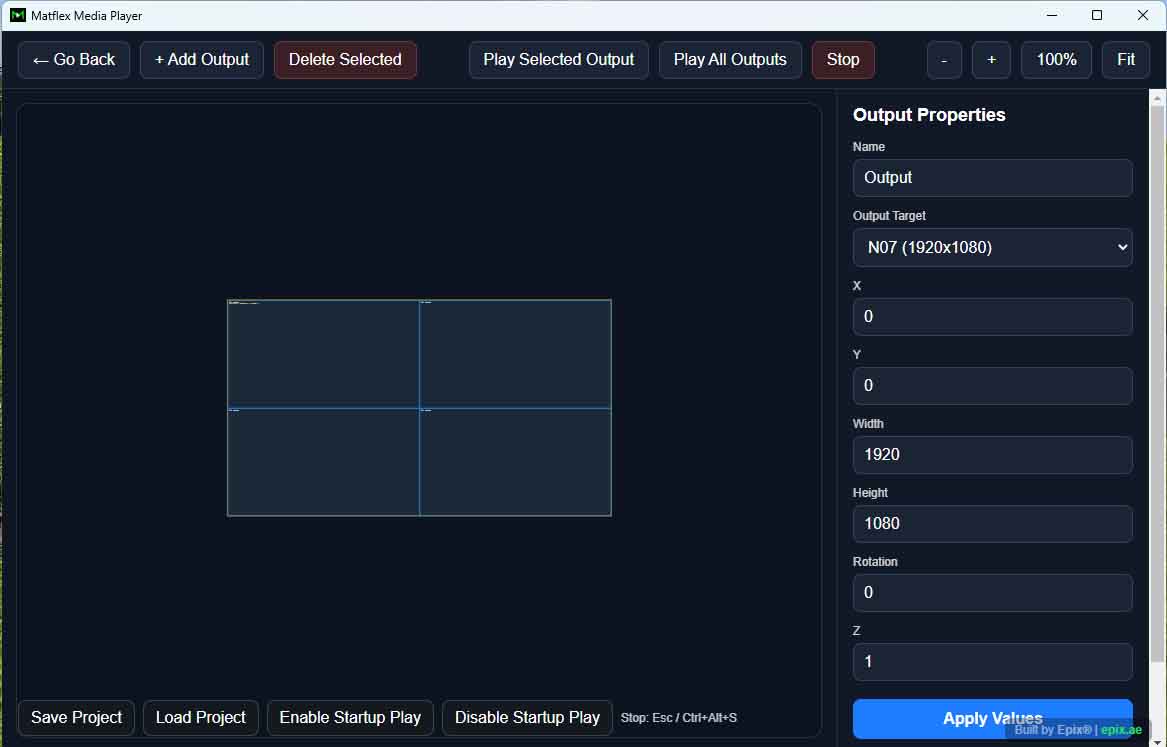

Powered by Matflex™ Media Player Technology
Standard playback solutions were not suitable for ultra-wide resolutions such as 14352×1040 and 12480×1040.
To solve this challenge, Epix® developed playback workflow solutions powered by Matflex™ Media Player technology for smooth ultra-wide LED playback and multi-output synchronization.
The system was optimized for continuous playback performance across large-format LED display environments.
Read Playback Challenge Article
Related Products & Solutions
Explore the LED display products, playback technology, and professional solutions used for this ultra-wide installation project.
P1.5 COB LED Screen
Fine pitch COB LED display technology used for ultra-wide premium indoor visual environments.
View ProductLED Video Wall Solutions
Professional indoor LED video wall systems for luxury showrooms, retail spaces, and commercial environments.
Explore SolutionsMatflex™ Media Player
Ultra-wide playback solution powered by Epix® using Matflex™ Media Player technology.
Learn MoreFinal Installation Result
The completed ultra-long LED displays transformed the showroom environment with immersive high-resolution visuals designed for luxury automotive presentation.
